Circuit Diagram: (M/T)

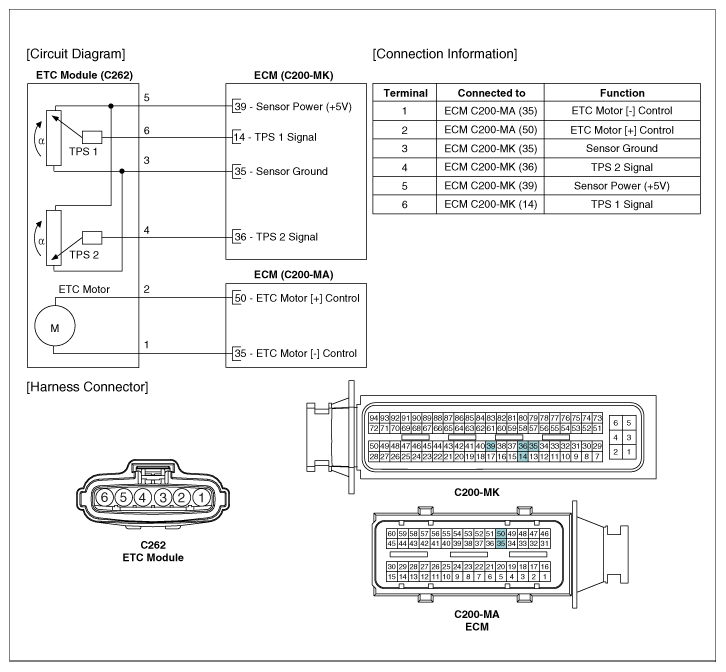

Fig 1: Electronic Throttle Control Module Connector (M/T)

G11955489

Courtesy of KIA MOTORS AMERICA, INC.
