Circuit Diagram: (A/T)

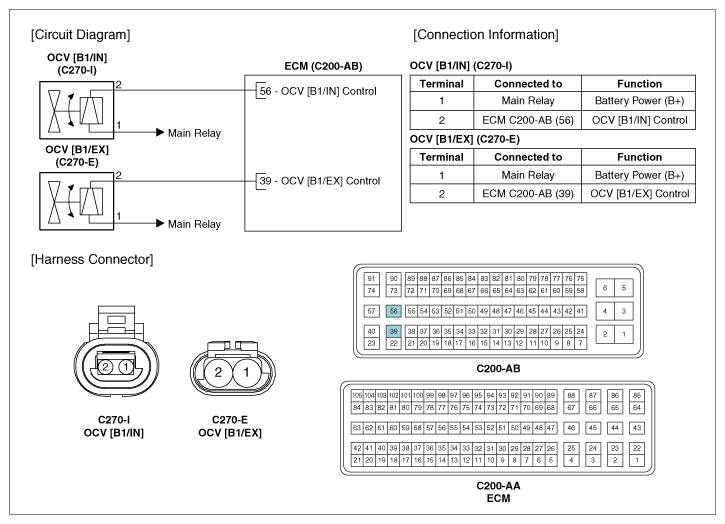

Fig 1: CVVT Oil Control Valve Connector (A/T)

G11955575

Courtesy of KIA MOTORS AMERICA, INC.
