Circuit Diagram: (A/T)

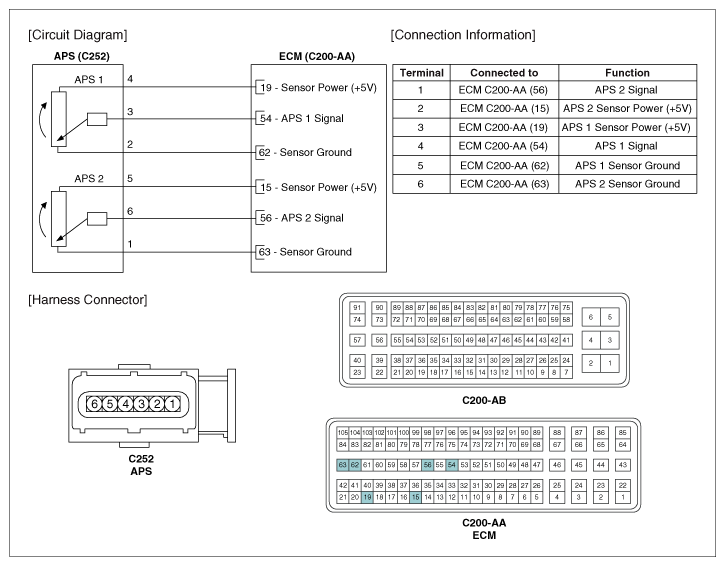

Fig 1: Accelerator Position Sensor Connector (A/T)

G11955544

Courtesy of KIA MOTORS AMERICA, INC.
