Components And Components Location: Components

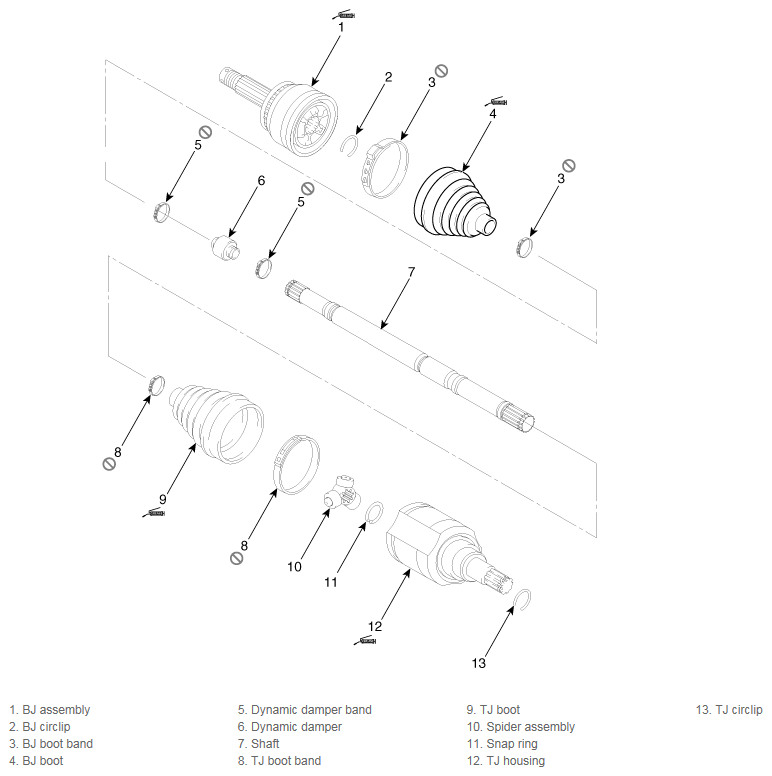

Fig 1: BJ Boot Exploded View

G11953440

Courtesy of KIA MOTORS AMERICA, INC.
