Signal Waveform & Data

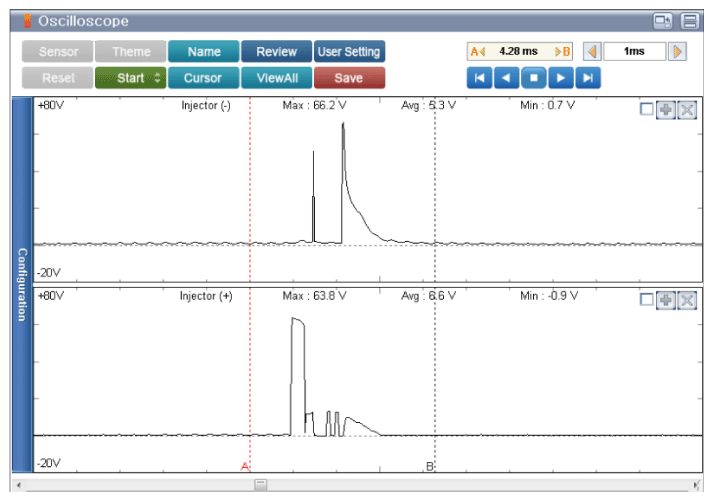

Fig 1: Scantool Display - Signal Waveform & Data (Engine Idle After Warm-Up)

Courtesy of KIA MOTORS AMERICA, INC.

CH. A (-) - Injector MAX voltage 66.2V

CH. B (+) - Injector MAX voltage 63.8V

* Test Method: Connect Channel A positive probe to Pin No. 1 (-) and Channel B positive probe to Pin No. 2 (+) on the injector connector.
