Repair Procedure: Installation

Install in the reverse order of removal.
NOTE:
- The existing valve body cover gasket (A) must be replaced with new one. (Do not reuse it.)

  Fig 1: Locate Existing Valve Body Cover Gasket
  Courtesy of KIA MOTORS AMERICA, INC.
- Perform the procedures below after replacing the solenoid valve.
1. Refill the automatic transaxle with fluid.
  (Refer to "FLUID REPLACEMENT "
2. Reset the automatic transaxle adaptive values using the KDS/GDS.

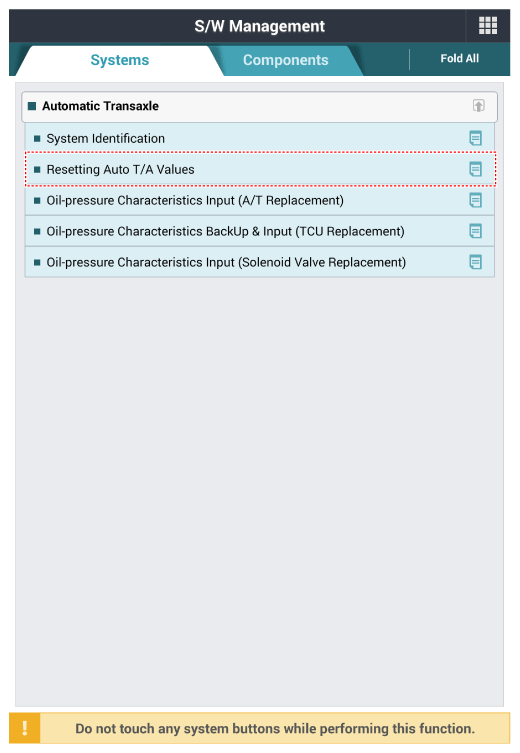

  Fig 2: Display - Resetting Automatic Transaxle Adaptive Values Screen
  Courtesy of KIA MOTORS AMERICA, INC.
3. Perform the TCM adaptive values learning procedure.
  (Refer to Automatic Transaxle Control System - "Repair Procedure ")
4. Confirm that there is no fluid leakage on connections after repairing.
