Description And Operation: Operation

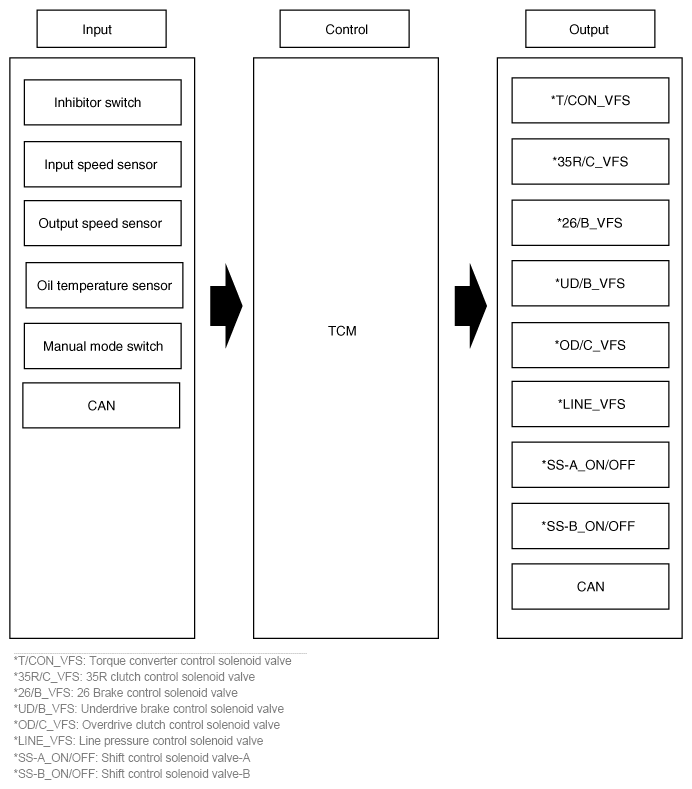

Fig 1: Automatic Transaxle Control System Block Diagram

G11872327

Courtesy of KIA MOTORS AMERICA, INC.
