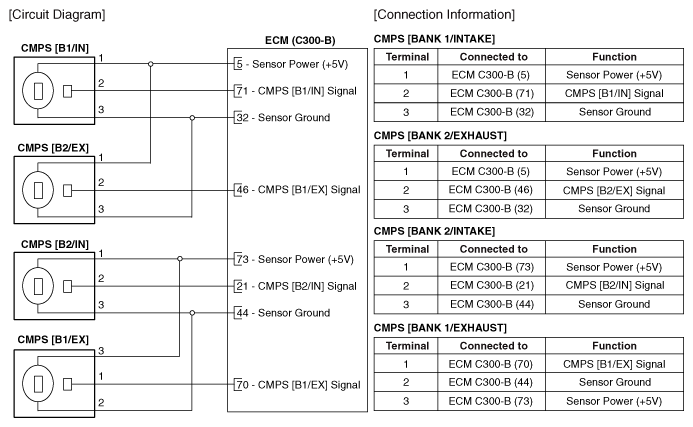

Home >> Kia >> 2016 >> Sorento SX, FWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 3.3L >> Camshaft Position Sensor (CMPS) >> Schematic Diagrams >> Circuit Diagram
