FOB Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "FOB KEY STATUS INFO".

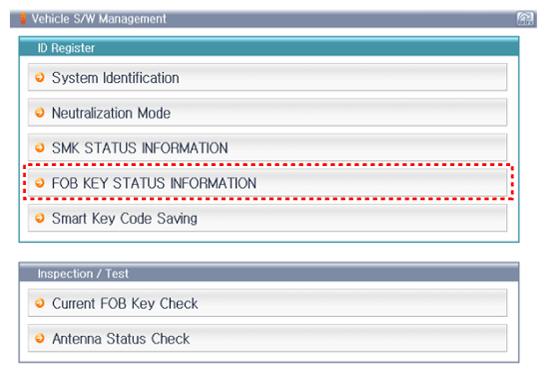

    Fig 1: Scantool Display - Vehicle S/W Management
    G11867188Courtesy of KIA MOTORS AMERICA, INC.

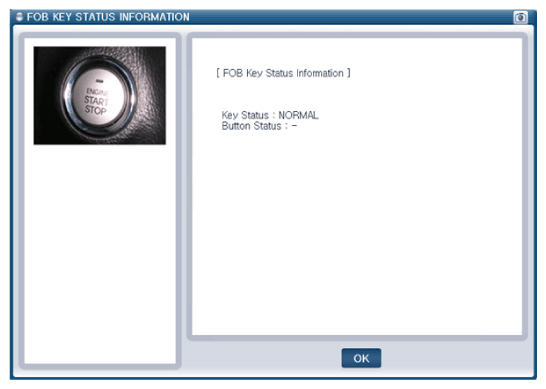

    Fig 2: Scantool Display - FOB Key Status Information
    G11867189Courtesy of KIA MOTORS AMERICA, INC.
