Monitor DTC Status

Connect GDS to Data Link Connector (DLC).
Ignition "ON"
Monitor "Diagnostic Trouble Codes (DTC) " with GDS.

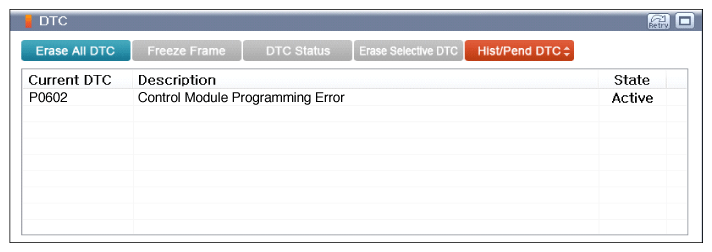

Fig 1: Display - Control Module Programming Error Screen
Courtesy of KIA MOTORS AMERICA, INC.
Is DTC status displayed as Present?
YES
- Go to "MONITOR GDS DATA " procedure.
NO
- Go to "Verification Of Vehicle Repair " procedure.
