Vehicle S/W Management

  1. Ignition switch "OFF"
  2. Connect GDS to Data Link Connector (DLC).
  3. Ignition switch "ON" & Engine "OFF"
  4. Select the "Vehicle S/W Management  " about related DTC with GDS.

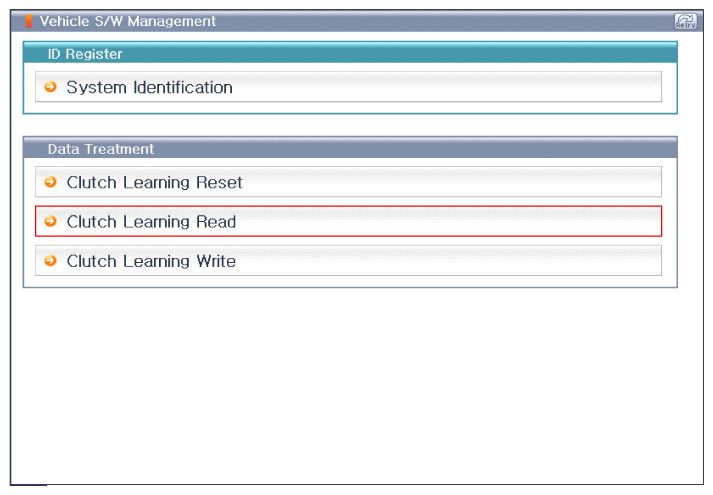

Fig 1: Display - Vehicle S/W Management List Screen
G11874586Courtesy of KIA MOTORS AMERICA, INC.

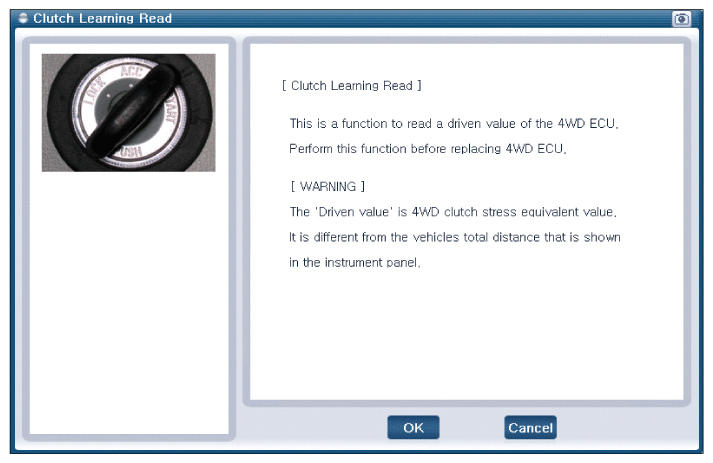

Fig 2: Display - Clutch Learning Read 1 Screen
G11874587Courtesy of KIA MOTORS AMERICA, INC.

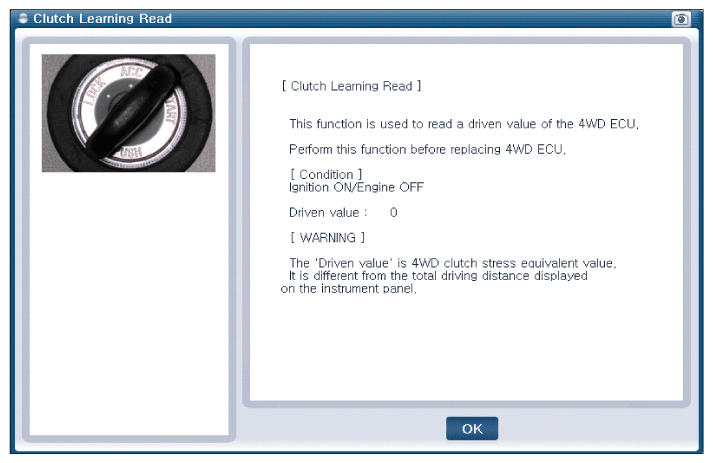

Fig 3: Display - Clutch Learning Read 2 Screen
G11874588Courtesy of KIA MOTORS AMERICA, INC.

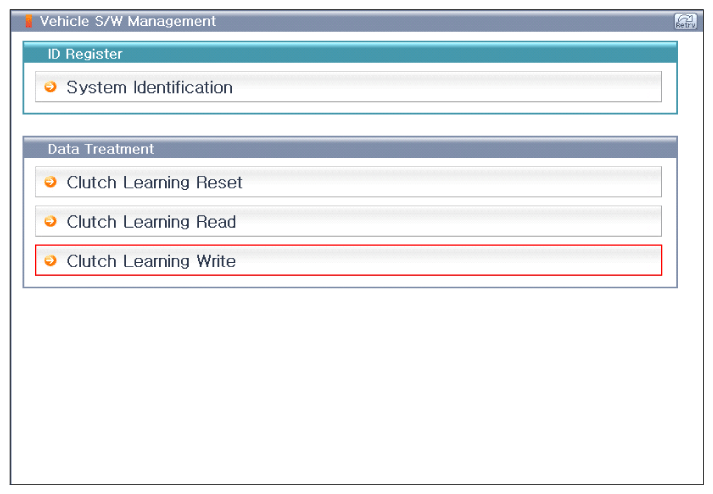

Fig 4: Display - Vehicle S/W Management List Screen
G11874589Courtesy of KIA MOTORS AMERICA, INC.

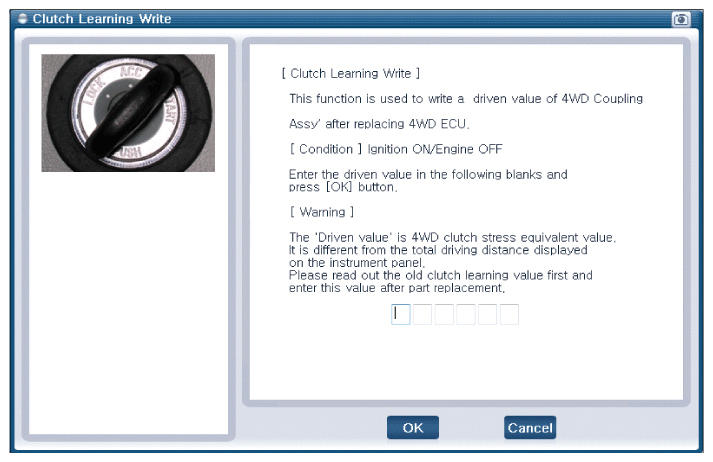

Fig 5: Display - Clutch Learning Write 1 Screen
G11874590Courtesy of KIA MOTORS AMERICA, INC.

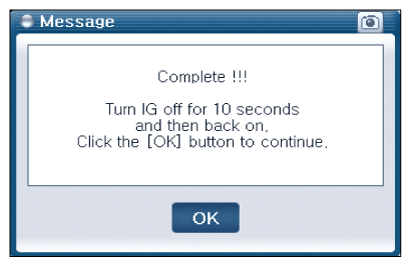

Fig 6: Display - Clutch Learning Write 2 Screen
G11874591Courtesy of KIA MOTORS AMERICA, INC.
