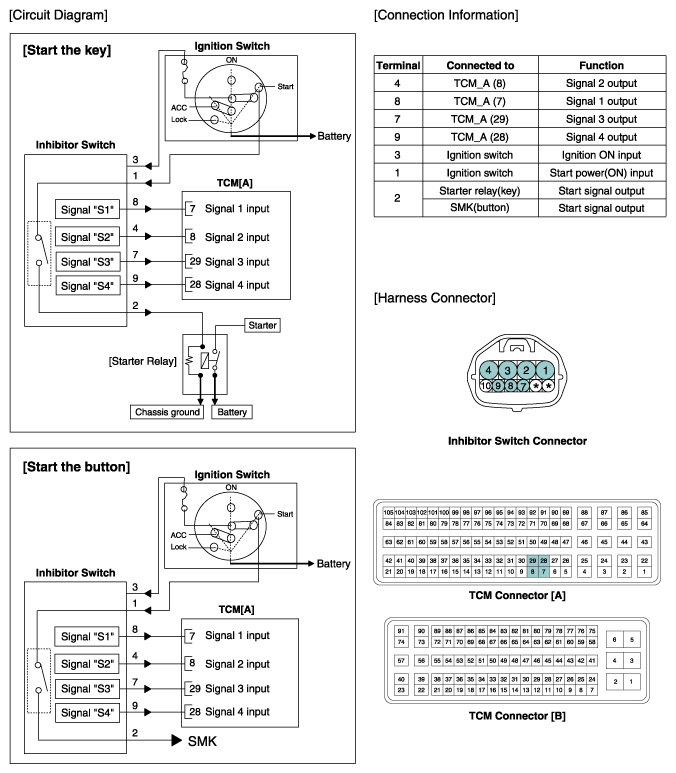

Home >> Kia >> 2016 >> Sorento L >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transaxle Control System - 2.4L >> Inhibitor Switch >> Schematic Diagrams >> Circuit Diagram
