Description And Operation: Operation

1. The oil pump is powered by the engine.
2. ATF passes through the oil filter and gets distributed along the oil channels.
3. TCM controls the hydraulic pressure using solenoid valves and controls clutch and brake operations.

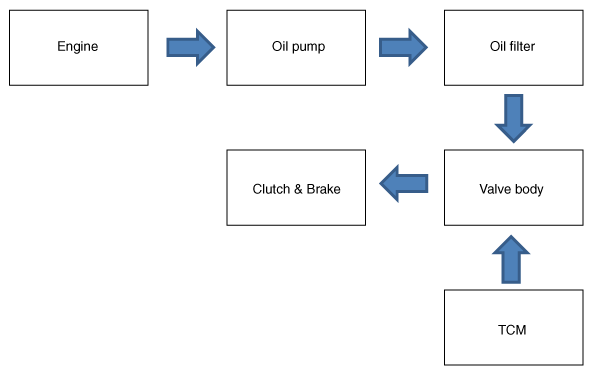

Fig 1: Hydraulic System Operation Flow Diagram

Courtesy of KIA MOTORS AMERICA, INC.
