Home >> Kia >> 2016 >> Sorento L >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Hydraulic System - 2.4L >> ATF Warmer >> Components And Components Location >> Components

Components And Components Location: Components

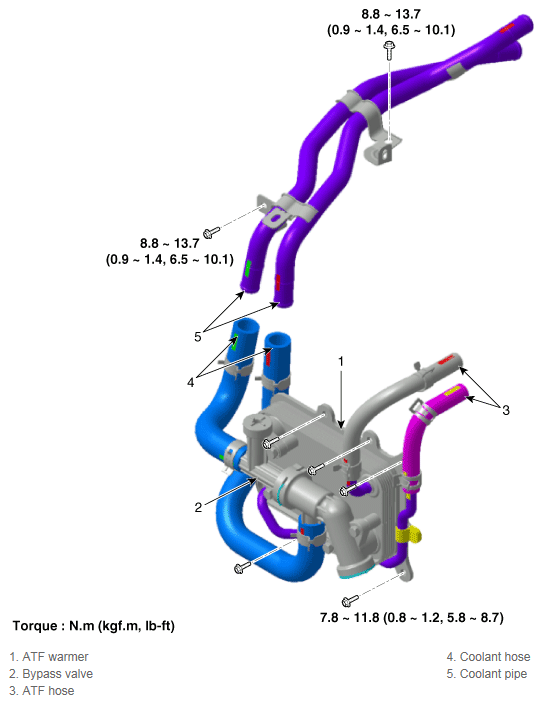

Fig 1: ATF Warmer Replacement Components With Torque Specifications

G11866009

Courtesy of KIA MOTORS AMERICA, INC.
