Repair Procedures: Removal

Remove the front wheel and tire (A) from front hub.
Tightening Torque:

88.2 ~ 107.8 N.m (9.0 ~ 11.0 kgf.m, 65.0 ~ 79.5 lb-ft)

CAUTION: Be careful not to damage the hub bolts when removing the front wheel and tire (A).

Fig 1: Locate Front Wheel And Tire With Nuts
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the stabilizer link (B) with the front strut assembly (A) after loosening the nut.
Tightening Torque:

98.1 ~ 117.7N.m (10.0 ~ 12.0kgf.m, 72.3 ~ 86.8lb-ft)

Fig 2: Locate Stabilizer Link And Front Strut Assembly With Nut
Courtesy of KIA MOTORS AMERICA, INC.
Remove the tie rod end ball joint (C) from the knuckle by using the SST (09568-34000).
1. Remove the split pin (A).
2. Remove the castle nut (B).
3. Use the SST (09568-34000).
Tightening Torque:

34.3 ~ 44.1 N.m (3.5 ~ 4.5 kgf.m, 25.3 ~ 32.5 lb-ft)

Fig 3: Locate Tie Rod End Ball Joint, Split Pin And Castle Nut
Courtesy of KIA MOTORS AMERICA, INC.

Fig 4: Remove Tie Rod End Ball Joint From Knuckle Using SST (09568-34000)
Courtesy of KIA MOTORS AMERICA, INC.
CAUTION:
- When using SST, be sure not to damage the dust cover of lower arm ball joint.
- Keep SST tied to the car as there is a risk of injury by dropping the SST when removing the lower arm ball joint.
- Be sure to use SST as the peripheral parts may be damaged when the lower arm ball joint is removed by using a general tool such as lever.
Loosen the bolt & nut and then remove the lower arm (A).
Tightening Torque:

98.1 ~ 117.7N.m (10.0 ~ 12.0kgf.m, 72.3 ~ 86.8lb-ft)

Fig 5: Locate Lower Arm With Bolt And Nut
Courtesy of KIA MOTORS AMERICA, INC.
Remove the front lower arm from the front knuckle using the SST (0K545-A9100).
1. After removing bolts from the front knuckle, install and tighten the sub body bolt (A).

  Fig 6: Locate Sub Body Bolt
  Courtesy of KIA MOTORS AMERICA, INC.
2. Input the sub body (A) between the front knuckle and the sub body bolt.
3. Tighten bolt (B) of the sub body bolt to broaden the gap of the front knuckle.

  Fig 7: Locate Sub Body And Bolt
  Courtesy of KIA MOTORS AMERICA, INC.
4. Install the safe wire (A).

  Fig 8: Locate Safe Wire
  Courtesy of KIA MOTORS AMERICA, INC.

  NOTE: Install a safe wire on the front strut to prevent dropping the SST and hurting technicians.
5. Install the main body, between the front strut and the lower arm.

  Fig 9: Install Main Body Between Front Strut And Lower Arm
  Courtesy of KIA MOTORS AMERICA, INC.
6. To avoid the main body coming off, install a fixing clamp (A) beside the main body.

  Fig 10: Locate Fixing Clamp
  Courtesy of KIA MOTORS AMERICA, INC.
7. After installing a fixing clamp, rotate the handle (B) clock wise till the clamp is fixed on a lower arm.

  Fig 11: Rotate Handle Clockwise
  Courtesy of KIA MOTORS AMERICA, INC.
8. Tighten a main body bolt (A) of the slowly and remove the lower arm from the front knuckle.
Fig 12: Locate Main Body Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the bolt (A) and then disconnect the universal joint assembly from the pinion of the steering gear box.
Tightening Torque:

32.4 ~ 37.3N.m (3.3 ~ 3.8kgf.m, 23.9 ~ 27.5lb-ft)
CAUTION:
- Keep the gear in the neutral range to prevent any damage on the clock spring inner cable while handling the steering wheel.
- Do not reuse the bolt.
Fig 13: Locate Universal Joint Assembly Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Remove the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
Remove the roll rod stopper bolt (A).
Tightening Torque:

107.9 ~ 127.5N.m (11.0 ~ 13.0kgf.m, 79.6 ~ 94.0lb-ft)

CAUTION: Bolt (A) is a special bolt only for bolt and is not to be reused.

Fig 14: Locate Roll Rod Stopper Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the muffler rubber hanger (A).

Fig 15: Locate Muffler Rubber Hanger
Courtesy of KIA MOTORS AMERICA, INC.
Remove the front sub frame.
(Refer to Front Suspension System - "SUB FRAME ")

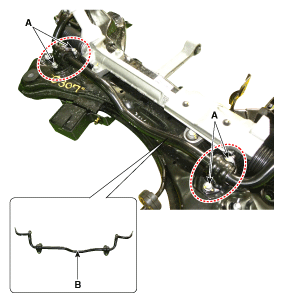

Loosen four (4) bolts (A) and then remove the stabilizer bar (B) from the sub frame.
Tightening Torque:

49.0 ~ 63.7N.m (5.0 ~ 6.5kgf.m, 36.2 ~ 47.0lb-ft)

Fig 16: Locate Stabilizer Bar And Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Check the wheel Alignment.
(Refer to Tires/Wheels - "ALIGNMENT ")
