MULTI-FUNCTION SWITCH REPAIR (SC330)

SERVICE CAMPAIGN BULLETIN

Reference Number(s): SC330, Date of Issue: January 01, 2025

KIA:	2016-2018 Sorento (UMa)
GROUP:	Voluntary Service Campaign

SERVICE INFORMATION

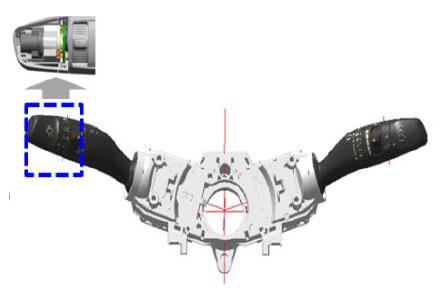

This bulletin provides information to repair the multi-function switch knob on certain 2016-2018MY Sorento (UMa) vehicles manufactured from October 27, 2014 through March 7, 2018. The contact points in the multifunction switch in the subject vehicles may become worn over time, which may result in intermittent headlamp flickering. Follow the procedure outlined in this publication to replace the multifunction switch moving block and outer cover with the new improved part.

NOTE: Repair status for a VIN is provided on KDealer+ (Service → Warranty Coverage → Warranty Coverage Inquiry → Campaign Information). Not completed Recall/Service Action reports are available on KDealer+ (Consumer Affairs → Not Completed Recall → Recall VIN → Select Report), which includes a list of affected vehicles.

REPAIR PROCEDURE

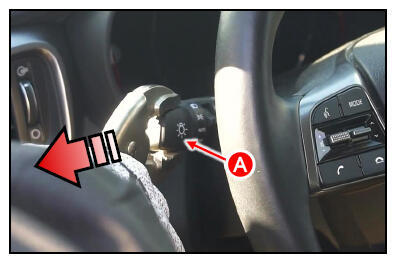

Remove the lamp multi-function switch knob cover (A) by pulling away using a set of pliers.

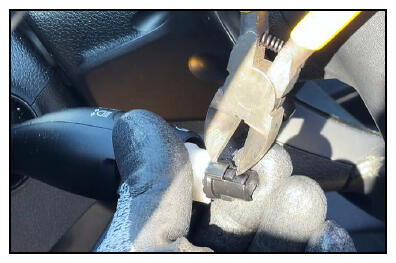

Cut the locking pin off by using a set of nipper pliers.

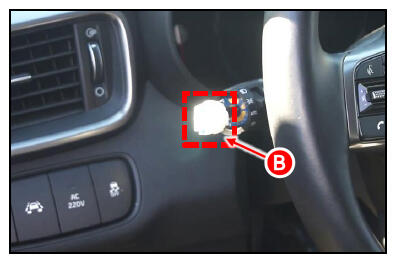

Remove the moving block (B) shown on the right.

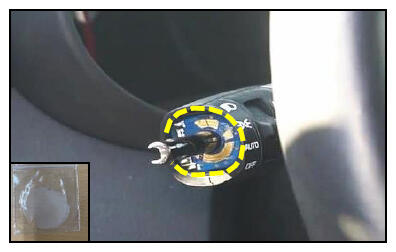

Apply grease to the printed circuit board (PCB) using the supplied grease PD20K-2 (2 grams).

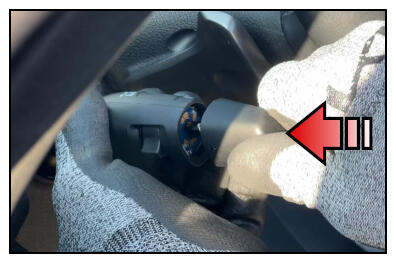

Insert/lock the new moving block and knob cover to secure to the multifunction switch handle as shown.

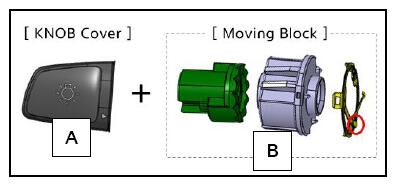

1. Knob Cover
2. Moving Block

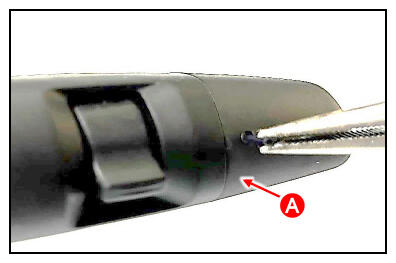

Ensure to secure the knob cover (A) using the locking pin shown.

AFFECTED VEHICLE RANGE

Model	Production Date Range
Sorento (UMa)	October 27, 2014 to March 7, 2018

REQUIRED PART

Part Name	Lighting Switch	Part Number	Figure	Qty.
Knob Cover and Moving Block	Automatic Type	93400 C6769QQK		1
Knob Cover and Moving Block	Manual Type	93400 C6770QQK		1

NOTE: The replacement part numbers will require a VIN entry for parts ordering. DO NOT order these parts for stocking purposes, related to this Campaign. Supply is very limited. Until supply stabilizes, please confirm part availability before scheduling customers. Please be sure to expedite warranty claim filing.

WARRANTY INFORMATION

N Code: N99 C Code: C99

Claim Type	Causal P/N	Qty.	Repair Description	Labor Op Code	Op Time	Replacement P/N	Qty.
R	93400 C5050 or 93400 C5751	0	(SC330) Multifunction Switch Repair	240A43R0	0.3 M/H	93400 C6769QQK or 93400 C6770QQK	1
NOTE: Refer to Warranty Bulletin 2025-06 for claim submission procedures. Manually enter sublet code 'X2' for reimbursement of one roundtrip rideshare expense or up to three (3) days of rental expense, with supporting documentation.

NOTE: VIN inquiry data for this repair is provided for tracking purposes only. Kia retailers should reference SC330 when accessing the KDealer+ system.
