Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery terminal.
  2. Remove the engine cover.
  3. Disconnect the ignition coil connector (A).
    Fig 1: Locat Ignition Coil Connector
    G11865432Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the ignition coil (A).

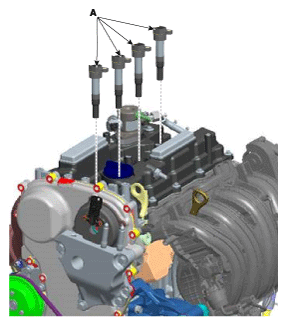

    Fig 2: Remove Ignition Coil
    G11865433Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).
    Fig 3: Removing Ignition Coil Connector
    G11865434Courtesy of KIA MOTORS AMERICA, INC.
