Sorento EX, 2.0L Eng VIN 1, FWD
>>
Repair and Diagnosis
>>
Transmission
>>
Transmission Control Systems
>>
Automatic Transaxle Control System - 2.0L
>>
Transaxle Control Module (TCM)
>>
Schematic Diagrams
>>
TCM Terminal Function
>>
Circuit Diagram
Circuit Diagram

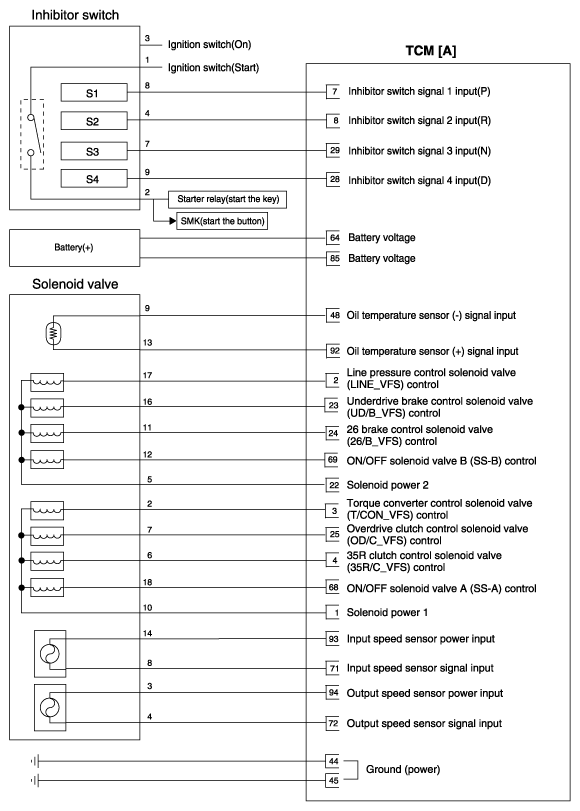

Fig 1: Transaxle Control Module Circuit Diagram (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Transaxle Control Module Circuit Diagram (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
