Home >> Kia >> 2016 >> Sorento EX, 2.0L Eng VIN 1, FWD >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transaxle Control System - 2.0L >> Components And Components Location >> Components

Components And Components Location: Components

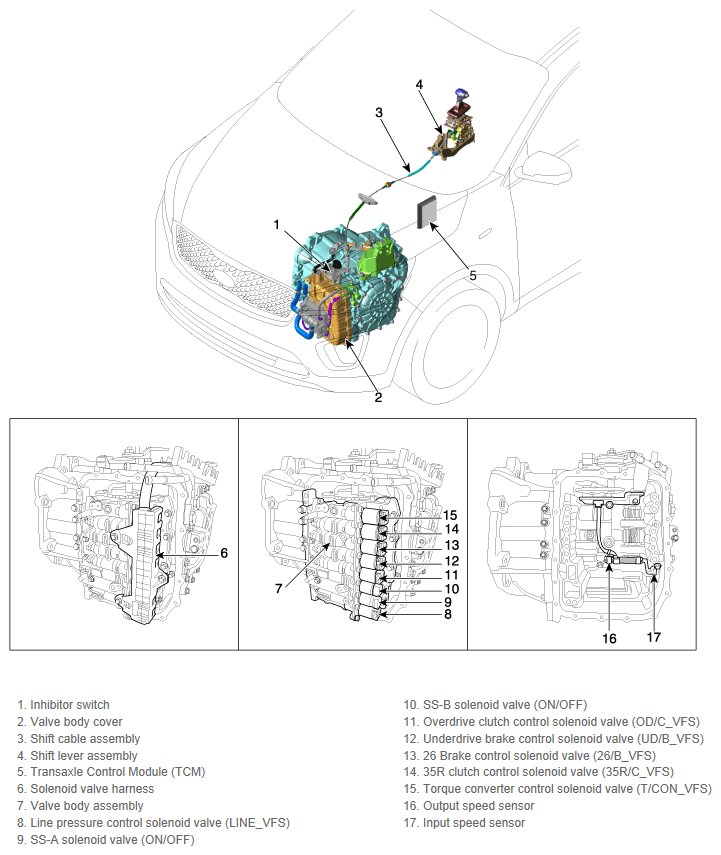

Fig 1: Automatic Transaxle Control System Components

G11862424

Courtesy of KIA MOTORS AMERICA, INC.
