Repair Procedure: Inspection

  1. Connect the GDS on the Data Link Connector (DLC).
  2. Measure the output voltage and fuel pressure of the RPS at idle and various engine speed.
    Pressure Output Voltage (V) [Vref=5V]
    bar [MPa (kgf/cm2 , psi)]
    0 0 (0, 0) 0.5
    140 14 (142, 2031) 2.5
    280 28 (286, 4061) 4.5

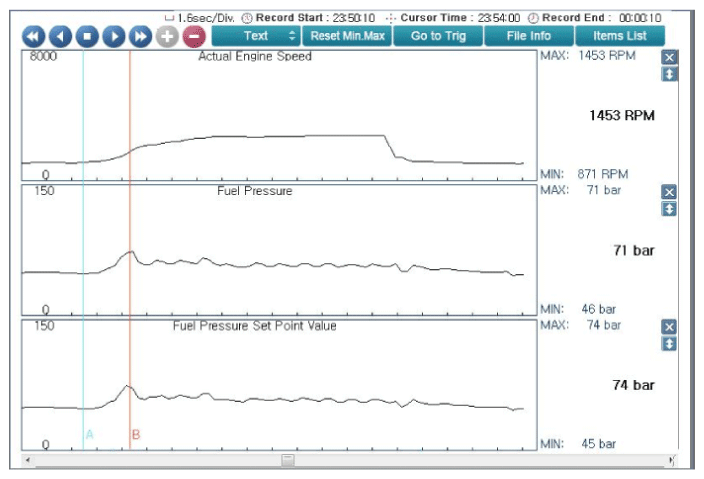

    Fig 1: Screen Display - Output Voltage And Fuel Pressure Of RPS
    G11862226Courtesy of KIA MOTORS AMERICA, INC.
