Repair Procedure: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the RCV control solenoid valve after disconnect the connector (A), bolt (B) and RCV hoses (C).

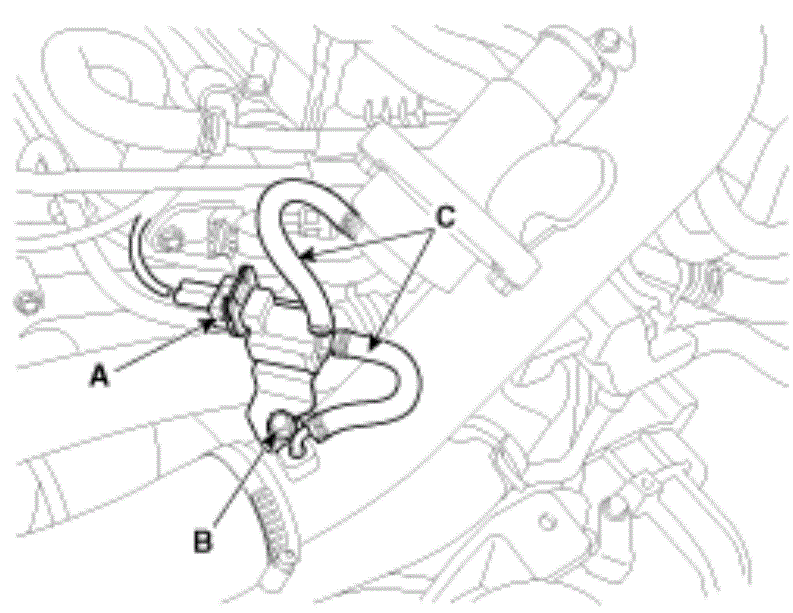

    3. Fig 1: Connector (A), Bolt (B) And RCV Hoses (C).
    G00573360Courtesy of KIA MOTORS AMERICA, INC.
