Signal Waveform
Signal Waveform

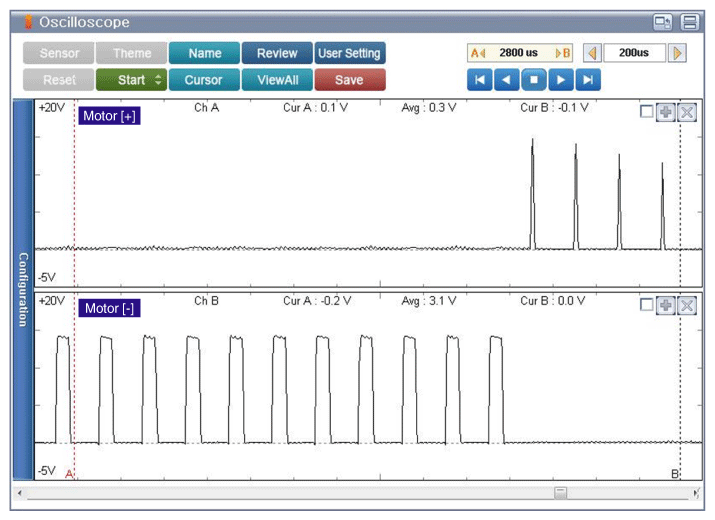

Fig 1: Screen Display - Signal Waveform (Motor)
Courtesy of KIA MOTORS AMERICA, INC.

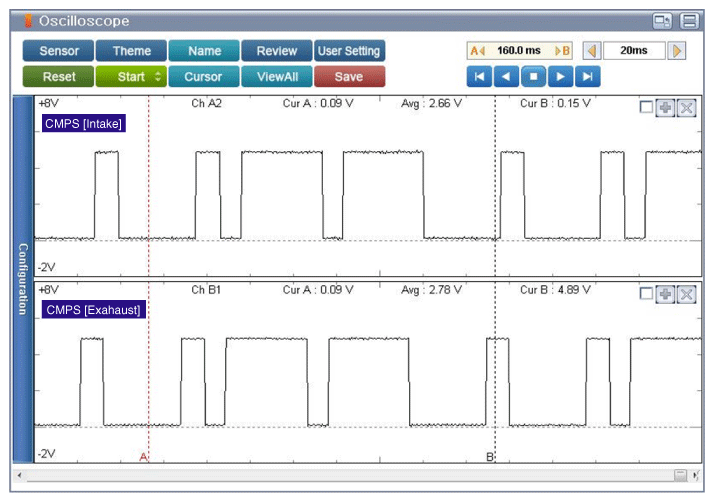

Fig 2: Screen Display - Signal Waveform (CMPS)
Courtesy of KIA MOTORS AMERICA, INC.
There is no separate sensor inside E-CVVT. Exhaust side 4-flank type target wheel is applied in order to compare CKPS and CMPS and calculate the valve timing.
