System Inspection

■ Resetting Adaptive Values

1. Connect GDS to Data Link Cable (DLC).
2. IG "ON" & ENG "OFF".
3. Select the "Vehicle S/W Management" about related DTC with GDS.

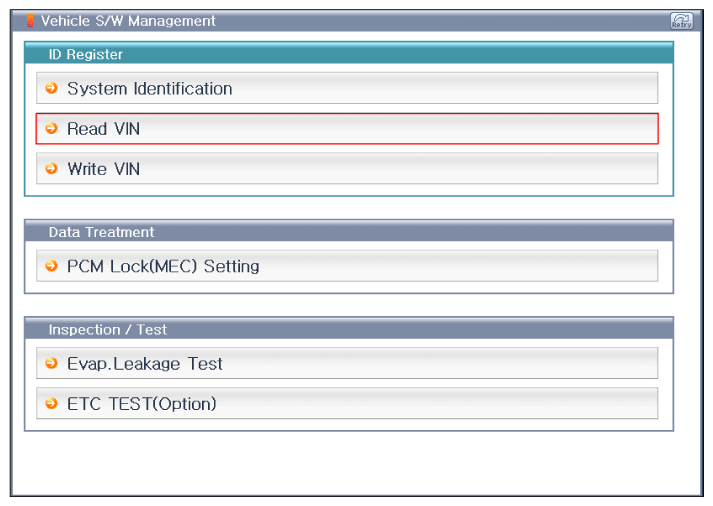

   Fig 1: Scantool Display - Selecting Read VIN

   Courtesy of KIA MOTORS AMERICA, INC.

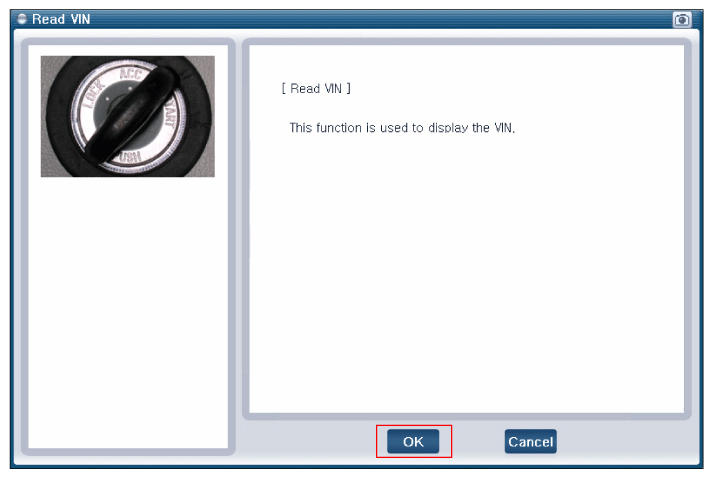

   Fig 2: Scantool Display - Pressing OK Button (IG ON And ENG OFF)

   Courtesy of KIA MOTORS AMERICA, INC.

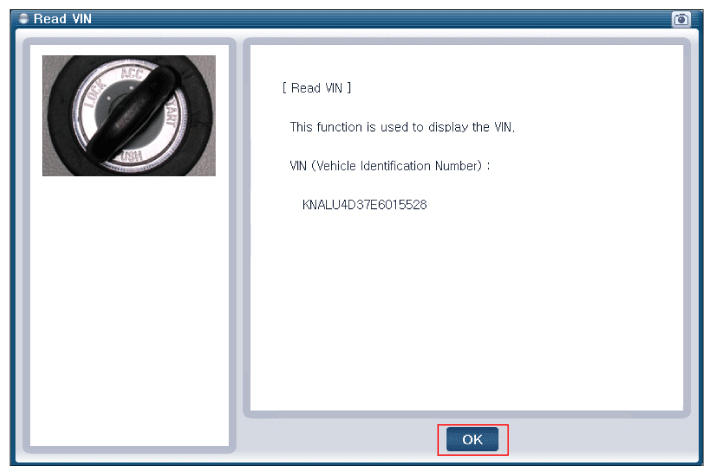

   Fig 3: Scantool Display - Checking VIN Number (Completed)

   Courtesy of KIA MOTORS AMERICA, INC.

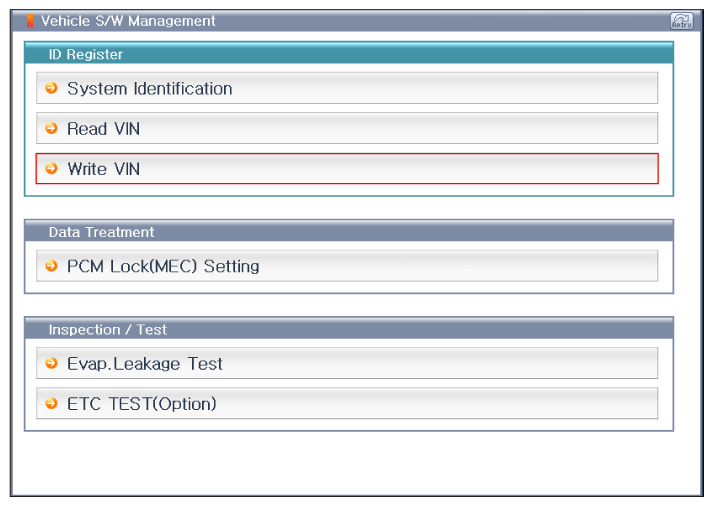

   Fig 4: Scantool Display - Selecting Write VIN

   Courtesy of KIA MOTORS AMERICA, INC.

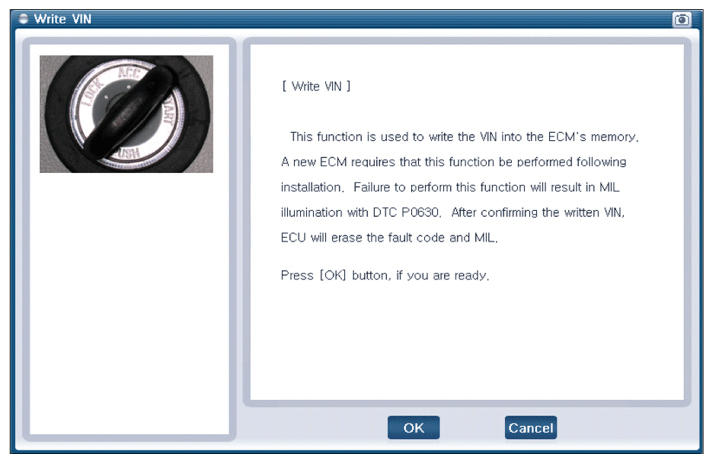

   Fig 5: Scantool Display - Pressing OK Button (IG ON And ENG OFF)

   Courtesy of KIA MOTORS AMERICA, INC.

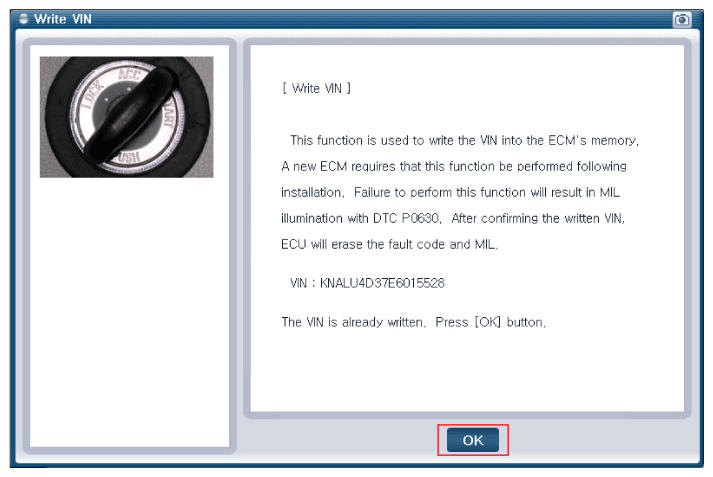

   Fig 6: Scantool Display - Checking VIN Number (Completed)

   Courtesy of KIA MOTORS AMERICA, INC.
4. When the "Read VIN, Write VIN" has been finished perfectly, press "OK" button and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
