Components and Components Location: Components

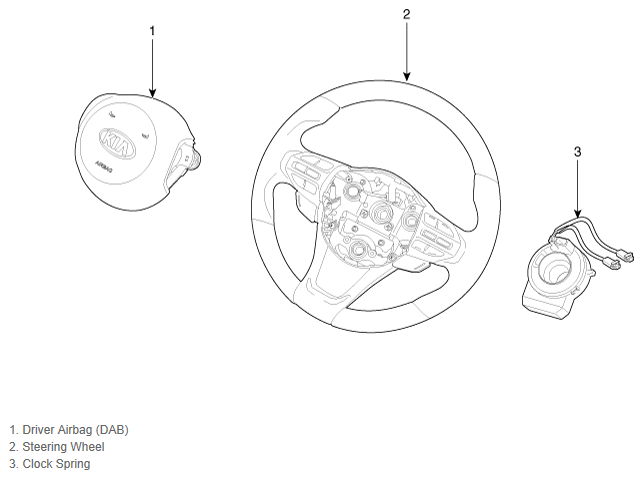

Fig 1: Locating Driver Airbag (DAB) Module And Clock Spring Components

G11857695

Courtesy of KIA MOTORS AMERICA, INC.
