Repair Procedures: Inspection

WARNING: This page is about a different car, the 2016 Kia K900. However, it is still accessible from the selected car via links, so may be relevant.

Remove the HUD switch.

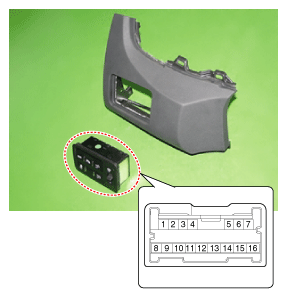

Fig 1: Locating HUD Switch Connector Terminals
Courtesy of KIA MOTORS AMERICA, INC.
Operate the HUD switch, then check for continuity between terminals of HUD switch connector.

Fig 2: HUD Switch Connector Terminals Continuity Chart

Courtesy of KIA MOTORS AMERICA, INC.
