Signal Waveform & Data

WARNING: This page is about a different car, the 2017 Kia K900. However, it is still accessible from the selected car via links, so may be relevant.

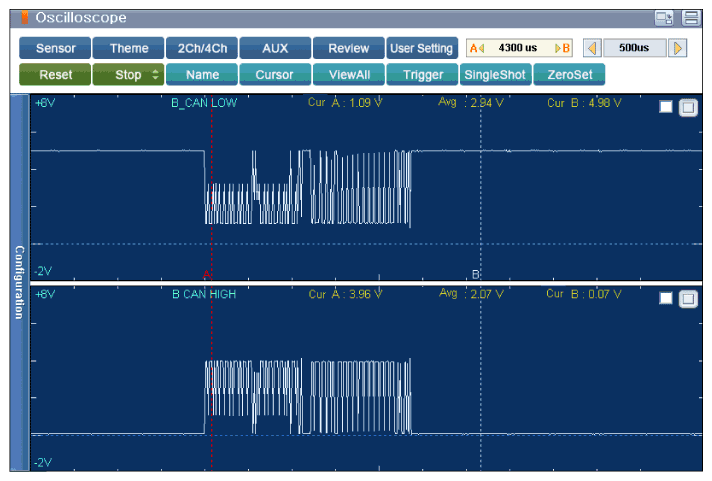

Fig 1: Scantool Display - CAN Low/High Signal Waveform
G11813237Courtesy of KIA MOTORS AMERICA, INC.

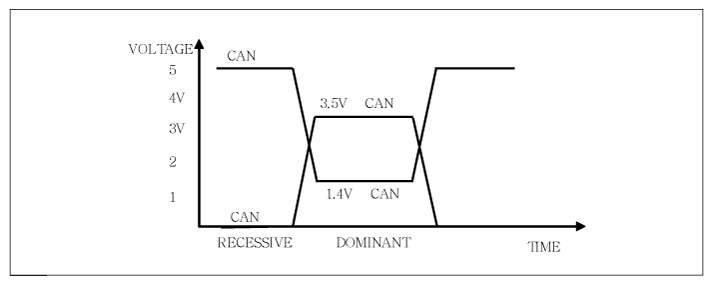

Fig 2: Scantool Display - CAN Bus Voltage Level (Low Speed CAN)
G11813238Courtesy of KIA MOTORS AMERICA, INC.
