Repair Procedures: Removal

WARNING: This page is about a different car, the 2017 Kia K900. However, it is still accessible from the selected car via links, so may be relevant.

Remove the Front LCD monitor.
(Refer to Premium AVN System - "Front LCD monitor ")
Remove the i-box (A) by loosening the bolts and nut.

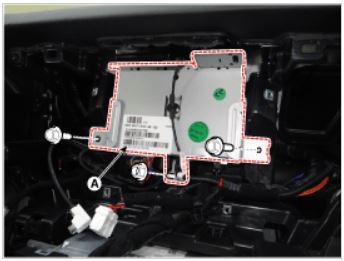

Fig 1: Removing The I-Box By Loosening The Bolts And Nut
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the connectors from the i-box (A).

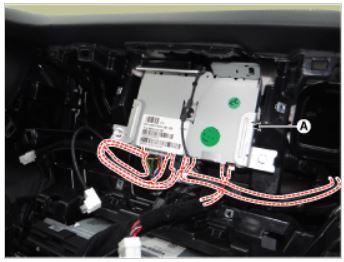

Fig 2: Disconnecting The Connectors From The I-Box

Courtesy of KIA MOTORS AMERICA, INC.
