Repair Procedures: Removal

WARNING: This page is about a different car, the 2017 Kia K900. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the overhead console lamp assembly (A) from the roof trim after loosening the mounting screws.

Fig 1: Removing Overhead Console Lamp Assembly From Roof Trim Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.
Remove the overhead console lamp assembly (B) after disconnecting the connectors (A).

Fig 2: Removing Overhead Console Lamp Assembly Connectors
Courtesy of KIA MOTORS AMERICA, INC.

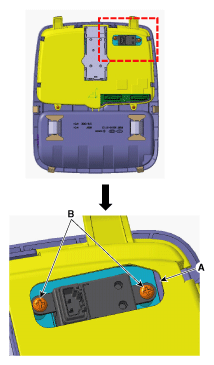

Loosen the hands free mic mounting screws (B) through the A/S hole (A).
And then remove the hands free mic (C) from the overhead console lamp assembly.

Fig 3: Loosening Hands Free Mic Mounting Screws Through A/S Hole
Courtesy of KIA MOTORS AMERICA, INC.

Fig 4: Removing Hands Free Mic From Overhead Console Lamp Assembly
Courtesy of KIA MOTORS AMERICA, INC.
