GDS Data Analysis

WARNING: This page is about a different car, the 2016 Kia K900. However, it is still accessible from the selected car via links, so may be relevant.
  1. IG "ON" & ENG "OFF"
  2. After connect GDS, select "Oscilloscope" mode.
  3. Measure the signal waveform on ADM and RHI-CON (Passenger Integrated Connector) Serial Communication LIN line.

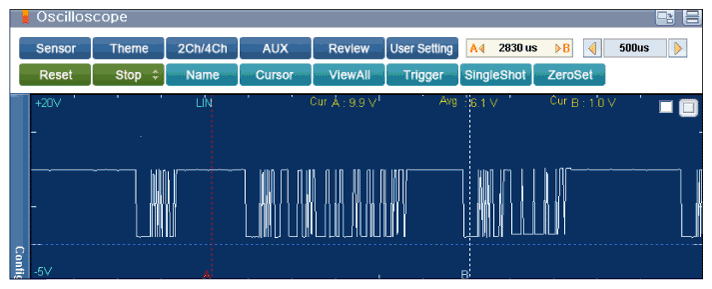

    Fig 1: Scantool Display - ADM And RHI-CON (Passenger Integrated Connector) Serial Communication
    G11813010Courtesy of KIA MOTORS AMERICA, INC.
  4. Does the measured signal waveform follow the specification?

    YES

    • Fault is intermittent caused by poor contact in the RHI-CON (Passenger Integrated Connectors) and/or ADM's connector or was repaired and ADM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO

    • Go to next procedure.
