Driver Power Window Switch

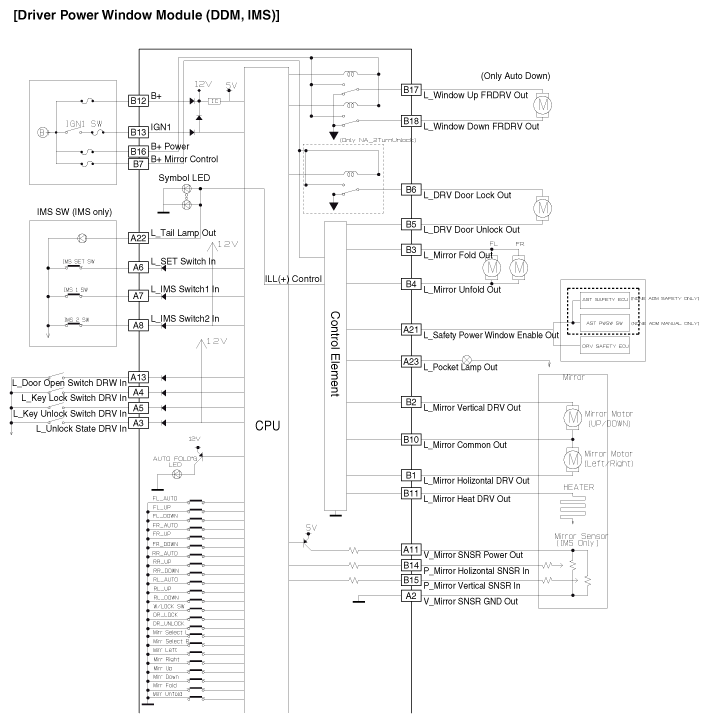

Fig 1: Driver Power Window Switch Schematic Diagrams (1 Of 2)
G11863091Courtesy of KIA MOTORS AMERICA, INC.

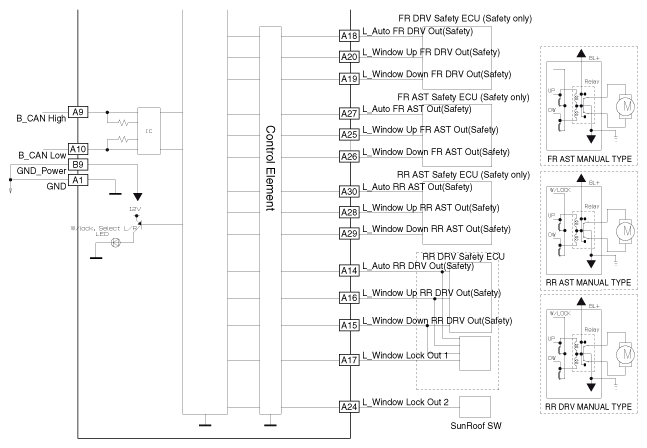

Fig 2: Driver Power Window Switch Schematic Diagrams (2 Of 2)
G11863092Courtesy of KIA MOTORS AMERICA, INC.
