Schematic Diagrams

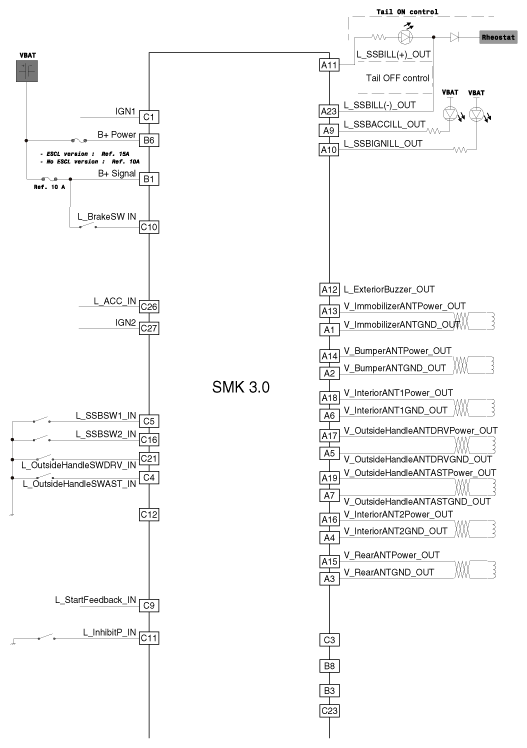

Fig 1: Smart Key Unit Schematic Diagrams (1 Of 2)

G11863218

Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Smart Key Unit Schematic Diagrams (2 Of 2)

G11863219

Courtesy of KIA MOTORS AMERICA, INC.
