Tolerance Compensation Environments

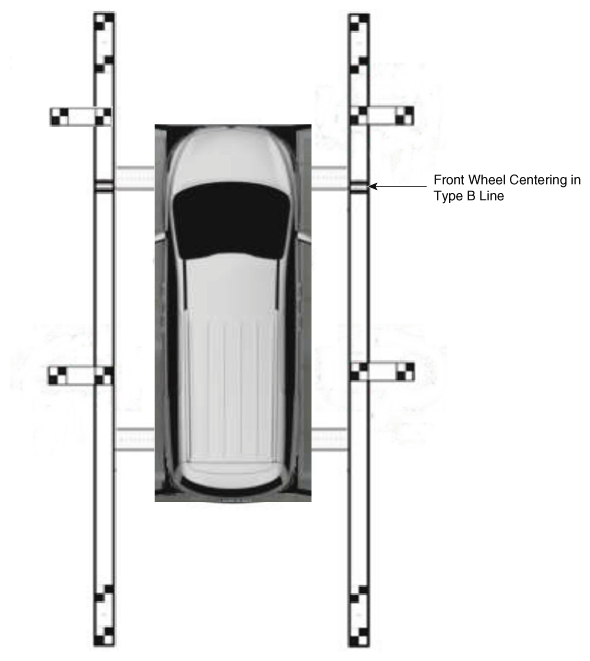

Fig 1: Tolerance Compensation Environments
G11863298Courtesy of KIA MOTORS AMERICA, INC.
NOTE: There are two types of tolerance compensations: [Manual Tolerance Compensation] and [automatic tolerance compensation].
The service center with the SVM exclusive workshop performs [Automatic Tolerance Compensation].
The maintenance environment without the SVM exclusive workshop performs [Manual Tolerance Compensation].
