Signal Waveform & Data

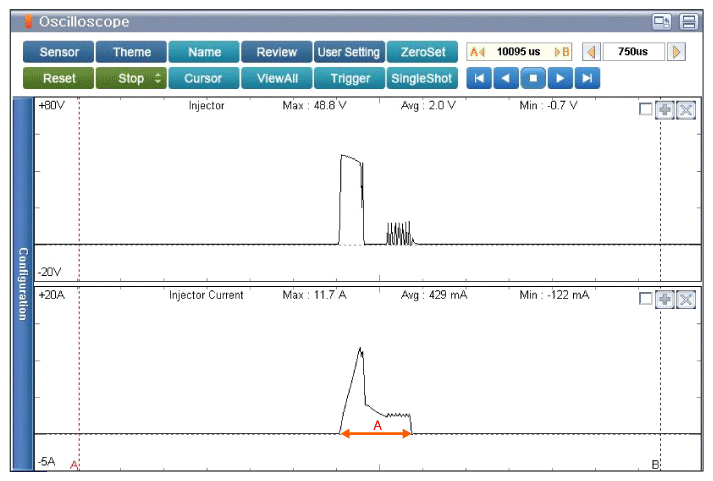

Fig 1: Screen Display - Injector Current Signal Waveform & Data, Engine Idle Warm Up

Courtesy of KIA MOTORS AMERICA, INC.

A: Fuel injection time - Approx 1110us

CH. A - Injector Max 48.8V

CH. AUX - Injector Current MAX 11.7A

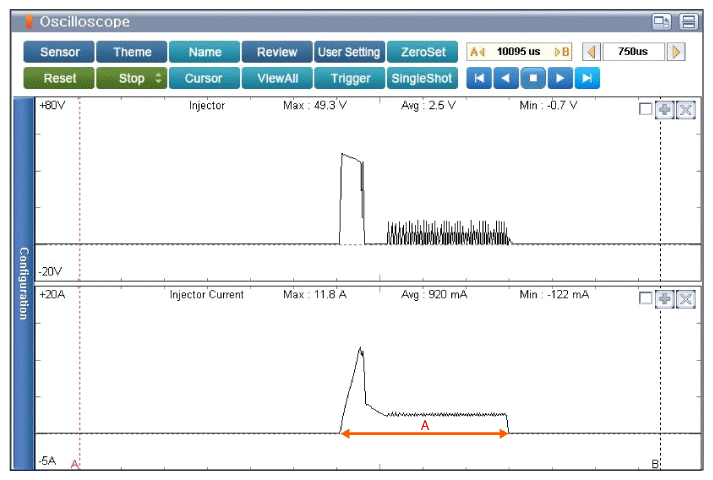

Fig 2: Screen Display - Injector Current Signal Waveform & Data At Acceleration

Courtesy of KIA MOTORS AMERICA, INC.

Fuel injection time - Approx. 2910us

CH. A - Injector Max 49.3V

CH. AUX - Injector Current MAX 11.8A
