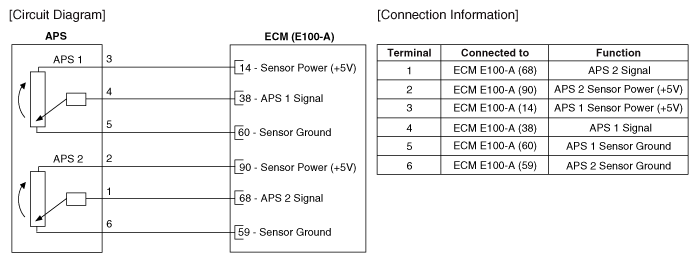

Home >> Kia >> 2016 >> Sedona L >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System >> Accelerator Position Sensor (APS) >> Schematic Diagrams >> Circuit Diagram
