Home >> Kia >> 2016 >> Sedona L >> Repair and Diagnosis >> Electrical >> Charging Systems >> Charging System >> Battery >> Troubleshooting >> Troubleshooting

Charging System: Battery: Troubleshooting: Troubleshooting

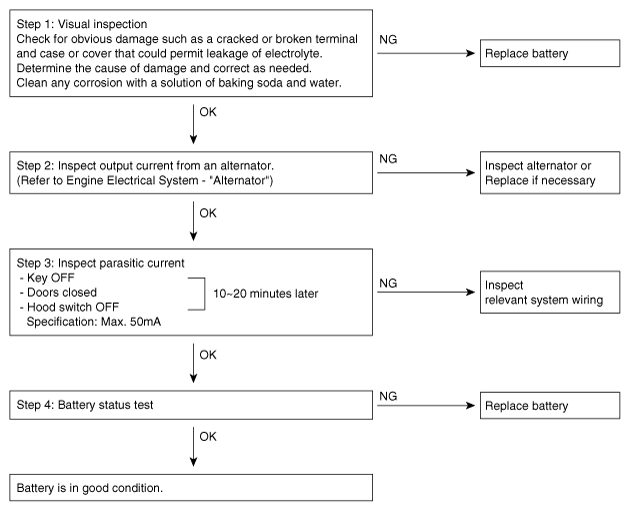

Fig 1: Battery Troubleshooting Flow Chart

G11856445

Courtesy of KIA MOTORS AMERICA, INC.
