Diagnostic Procedure Using a Diagnostic Instrument

The following section describes how to diagnose faults using a diagnostic instrument.

1. Connect the diagnostic instrument to the self-diagnostic connector (16-pin) beneath the crash pad on the side of driver's seat, and then turn on the ignition to activate the diagnostic instrument.
2. In the GDS Vehicle Type Selection menu, select "Vehicle Type" and "TPMS" System, and then opt for "OK."

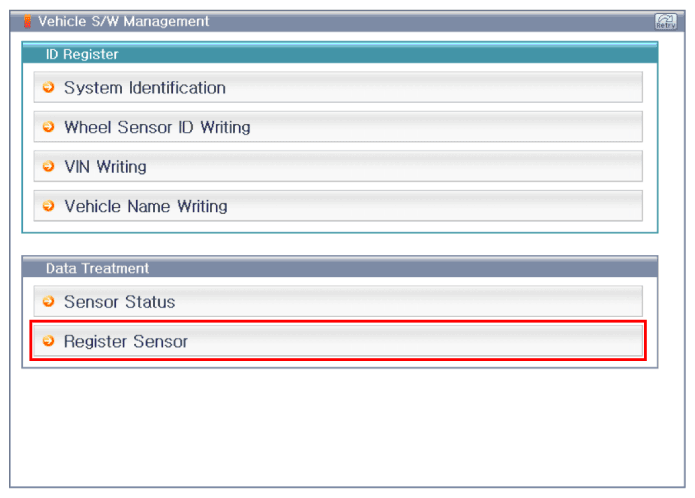

   [Initial Screen for Sensor ID Registration]

   Fig 1: Screen Display - Sensor ID Registration

   Courtesy of KIA MOTORS AMERICA, INC.

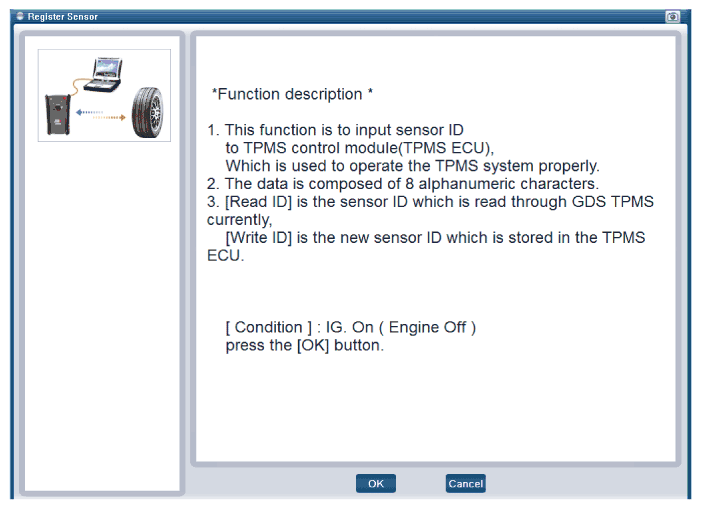

   [Register Sensor Function Description]

   Fig 2: Screen Display - Register Sensor Function Description

   Courtesy of KIA MOTORS AMERICA, INC.

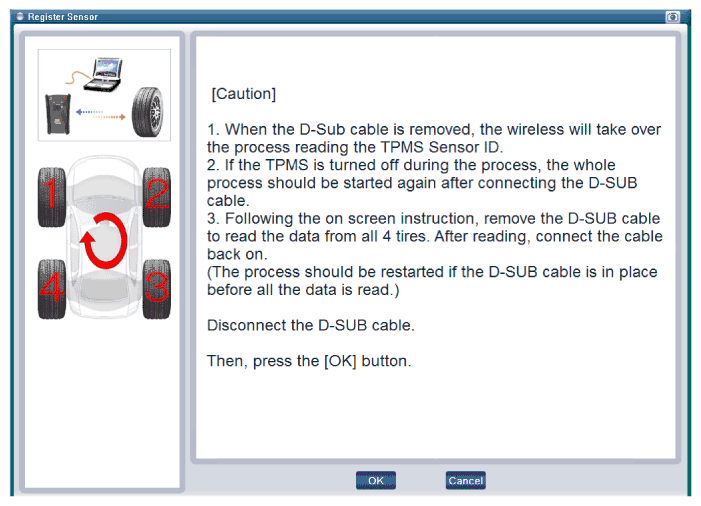

   [Preparation Phase Sensor Measurements]

   Fig 3: Screen Display - Preparation Phase Sensor Measurements

   Courtesy of KIA MOTORS AMERICA, INC.

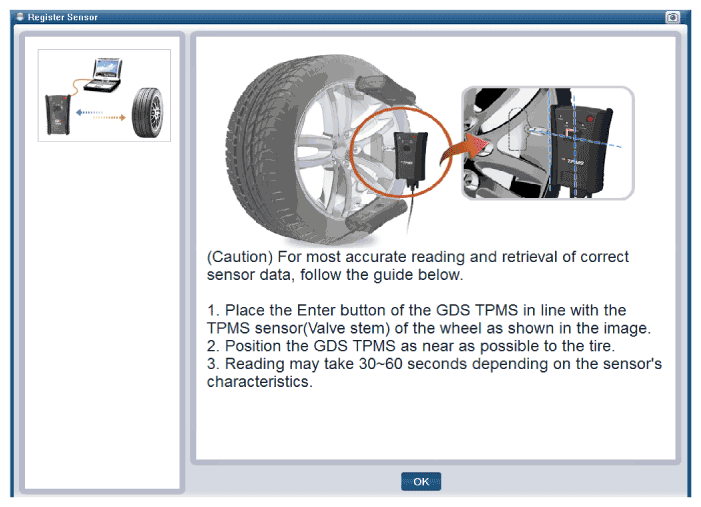

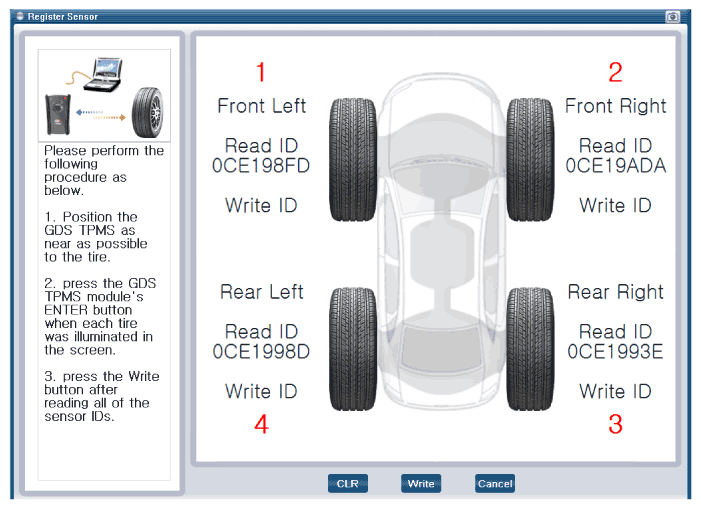

   [Sensor Register Method 1]

   Fig 4: Screen Display - Sensor Register Method 1

   Courtesy of KIA MOTORS AMERICA, INC.

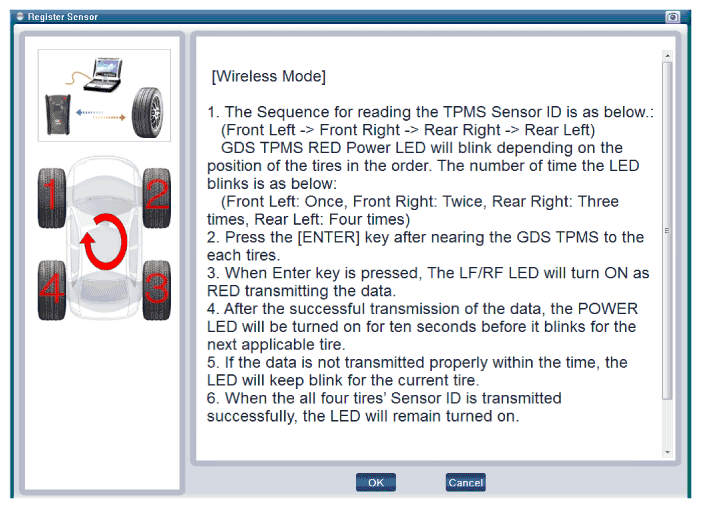

   [Sensor Register Method 2]

   Fig 5: Screen Display - Sensor Register Method 2

   Courtesy of KIA MOTORS AMERICA, INC.

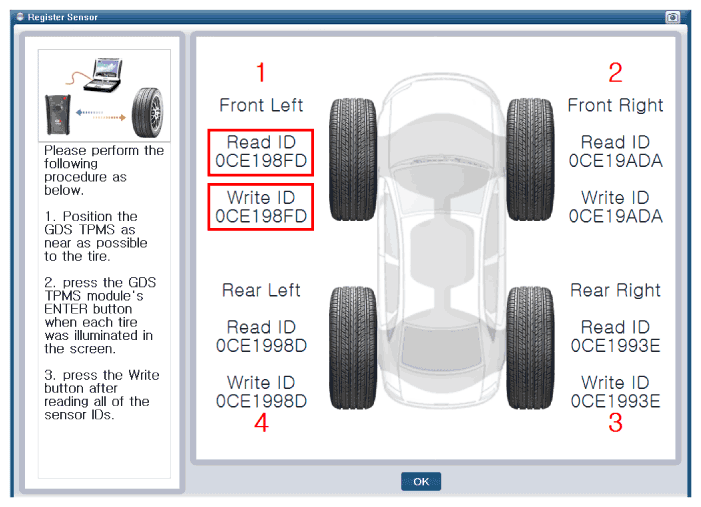

   [Sensor Register Method 3]

   Fig 6: Screen Display - Sensor Register Method 3

   Courtesy of KIA MOTORS AMERICA, INC.

   [Sensor Register Method 4]

   Fig 7: Screen Display - Sensor Register Method 4

   Courtesy of KIA MOTORS AMERICA, INC.

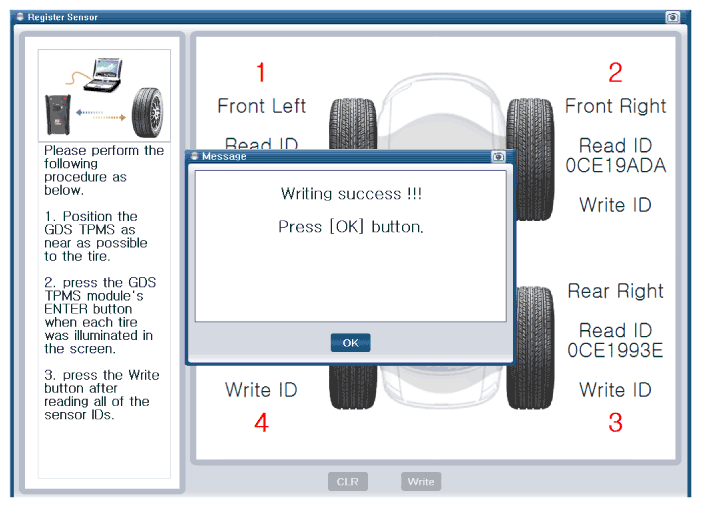

   [Sensor Register Method 5]

   Fig 8: Removing Sensor Register Method 5

   Courtesy of KIA MOTORS AMERICA, INC.
   NOTE:

   • Make sure that the read ID matches the written ID.
   • After successfully registering the sensor, proceed to "Sensor Wireless Information" to ensure that the sensor functions correctly.

   [Sensor Status Initialization]

   Fig 9: Screen Display - Sensor Status Initialization

   Courtesy of KIA MOTORS AMERICA, INC.

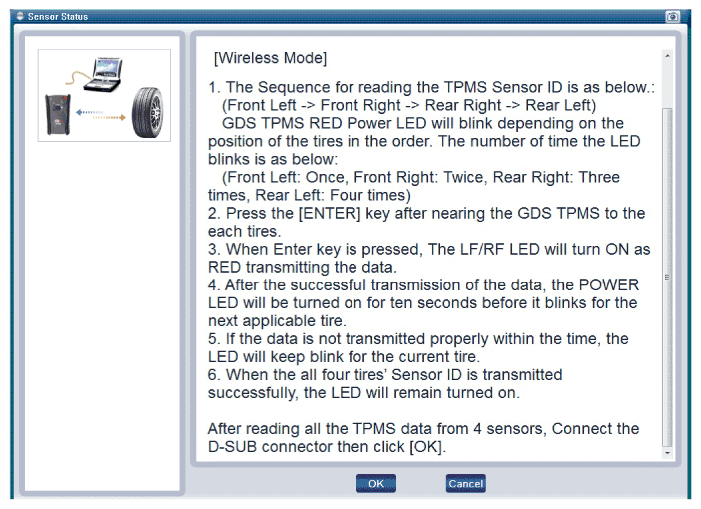

   [Sensor Function Description]

   Fig 10: Screen Display - Sensor Function Description

   Courtesy of KIA MOTORS AMERICA, INC.

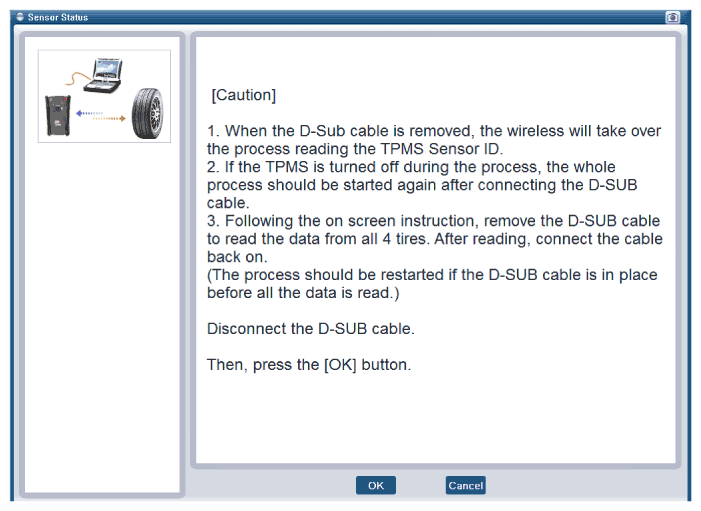

   [Preparation Phase Sensor Measurements]

   Fig 11: Screen Display - Preparation Phase Sensor Measurements

   Courtesy of KIA MOTORS AMERICA, INC.
   NOTE:

   • In North America, the cable is measured separately.
   • In Domestic/General(European) area, the cable is measured without separation.

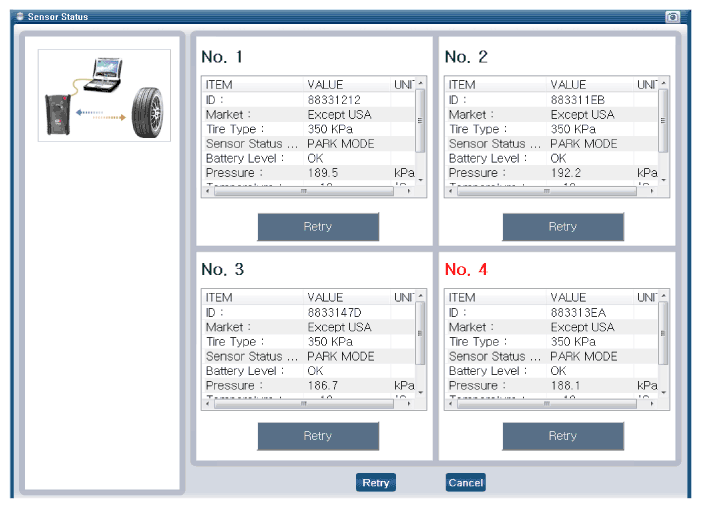

   [Sensor Measurements 1]

   Fig 12: Screen Display - Sensor Measurements 1

   Courtesy of KIA MOTORS AMERICA, INC.

   [Sensor Measurements 2]

   Fig 13: Screen Display - Sensor Measurements 2

   Courtesy of KIA MOTORS AMERICA, INC.

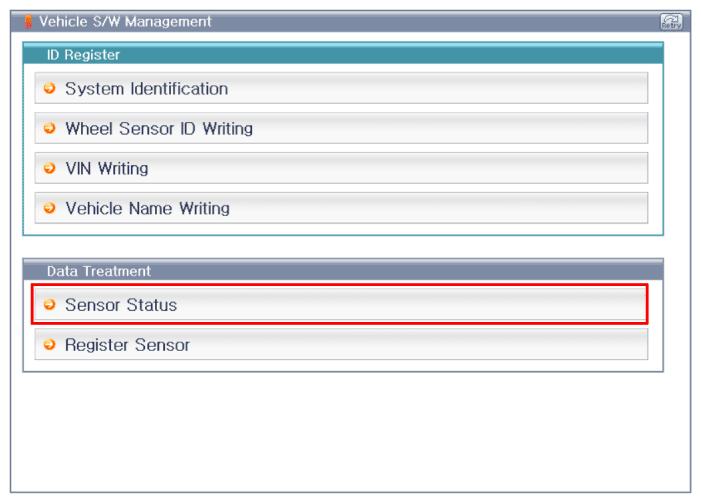

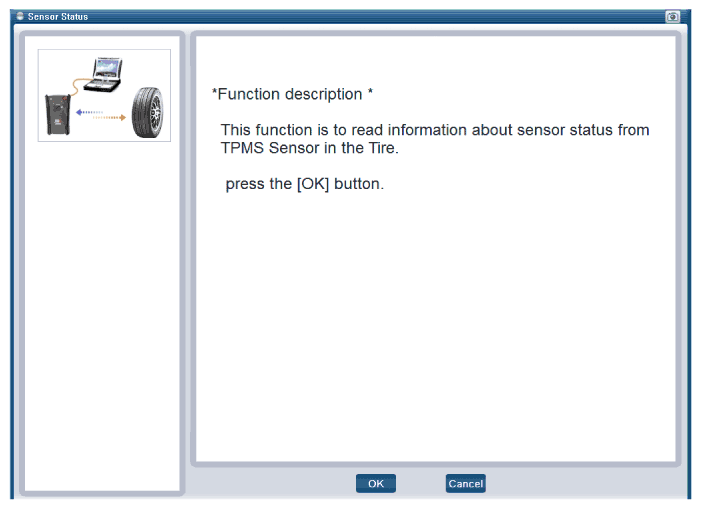

   [Sensor Status]

   Fig 14: Screen Display - Sensor Status

   Courtesy of KIA MOTORS AMERICA, INC.
   NOTE:

   • Check each sensor component to ensure that it functions correctly.
   • Replace any tires or sensors that do not function correctly, proceed to the sensor registration procedure, and check if the sensors function correctly.
