Monitor GDS Data

WARNING: This page is about a different car, the 2016 Kia K900. However, it is still accessible from the selected car via links, so may be relevant.

Connect GDS to Data Link Connector (DLC).
Engine "ON" and Head lamp "ON".
Select "Current Data" mode and monitor the "LDM Left Status - Low/High" parameters on the GDS.

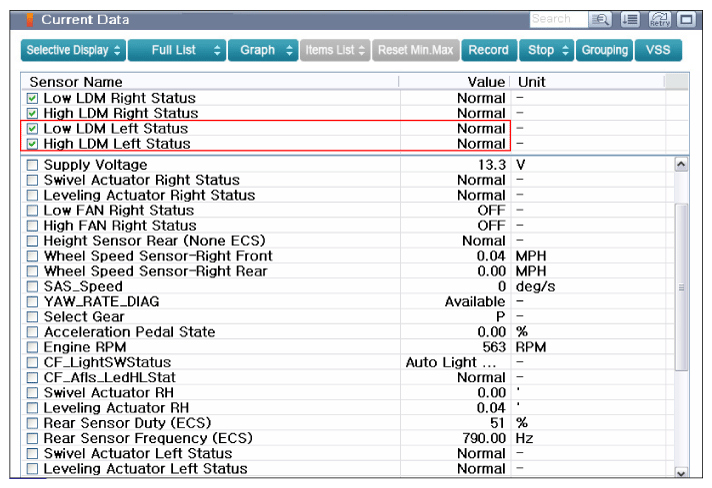

Fig 1: Scantool Display - AFLS Current Data (Engine ON)
Courtesy of KIA MOTORS AMERICA, INC.
Is the measured Current data within specifications?

YES

Fault might be intermittent caused by poor contact in the sensor's and/or ECU's connector or was repaired and ECU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

NO

Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
