Signal Waveform & Data

WARNING: This page is about a different car, the 2017 Kia K900. However, it is still accessible from the selected car via links, so may be relevant.

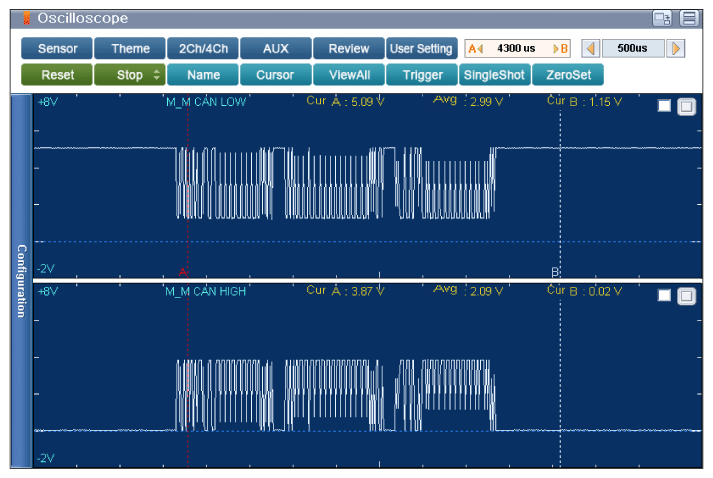

Fig 1: Display - Normal MM Low CAN And High CAN Signal Screen
G11814179Courtesy of KIA MOTORS AMERICA, INC.
