Diagnostic Procedure Using a Diagnostic Instrument

The following procedure describes how to diagnose faults using a diagnostic instrument.

1. Connect the diagnostic instrument to the self-diagnostic connector (16-pin) beneath the crash pad on the side of driver's seat, and then turn on the ignition to activate the diagnostic instrument.
2. In the GDS Vehicle Type Selection menu, select "Vehicle Type" and "TPMS" System, and then opt for "OK."

   [Vehicle Name Input Initialization]

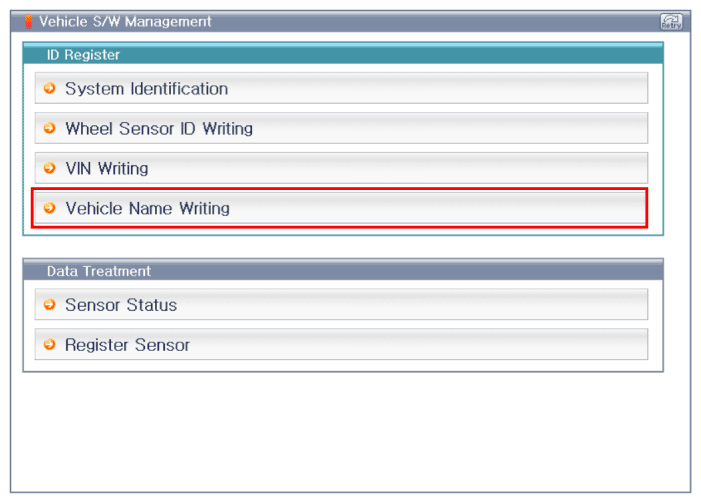

   Fig 1: Screen Display - Vehicle Name Input Initialization

   Courtesy of KIA MOTORS AMERICA, INC.

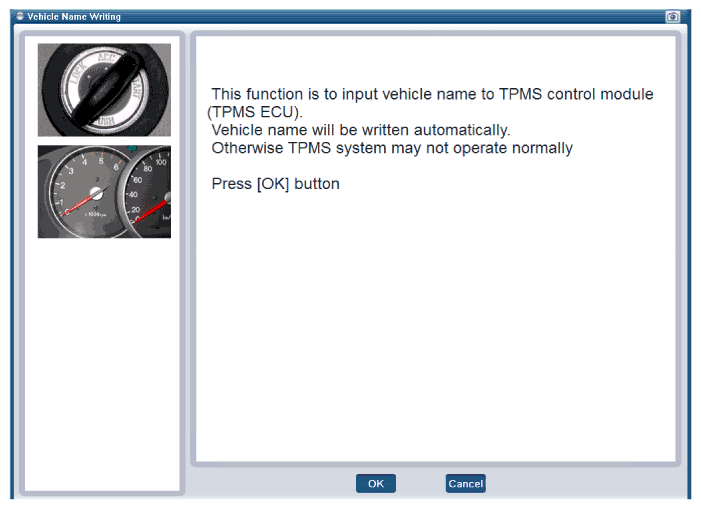

   [Vehicle Name Writing 1]

   Fig 2: Screen Display - Vehicle Name Writing 1

   Courtesy of KIA MOTORS AMERICA, INC.

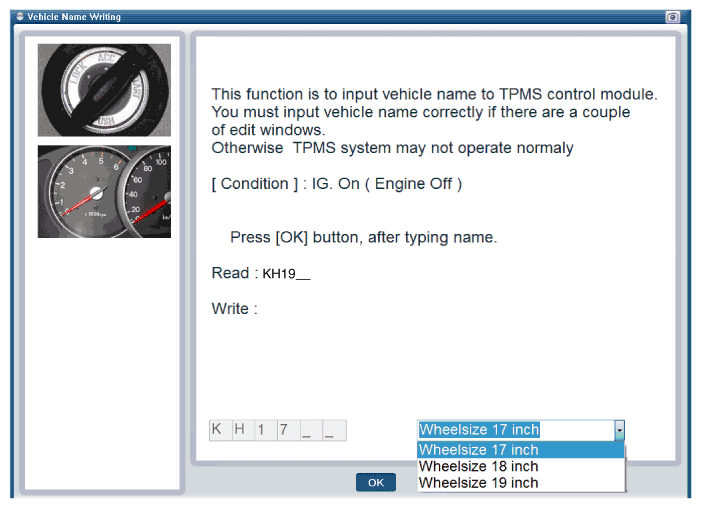

   [Vehicle Name Writing 2]

   Fig 3: Screen Display - Vehicle Name Writing 2

   Courtesy of KIA MOTORS AMERICA, INC.

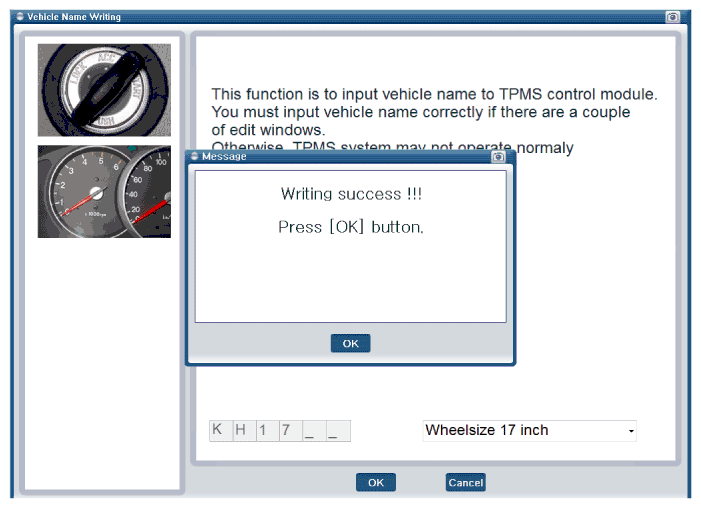

   [Vehicle Name Writing 3]

   Fig 4: Screen Display - Vehicle Name Writing 3

   Courtesy of KIA MOTORS AMERICA, INC.

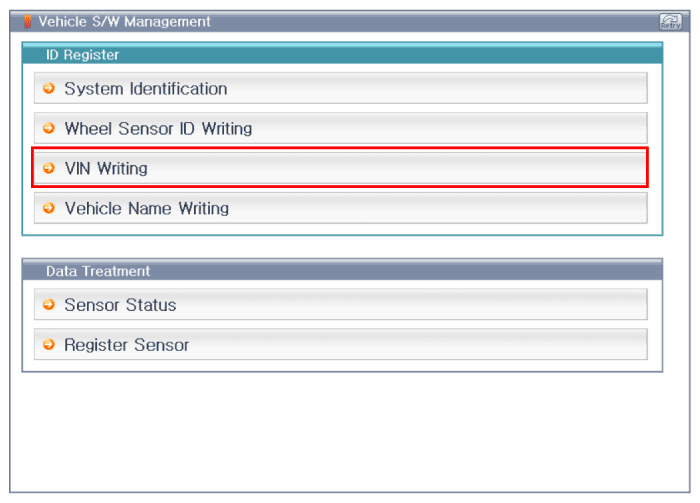

   [VIN Input Initialization]

   Fig 5: Screen Display - VIN Input Initialization

   Courtesy of KIA MOTORS AMERICA, INC.

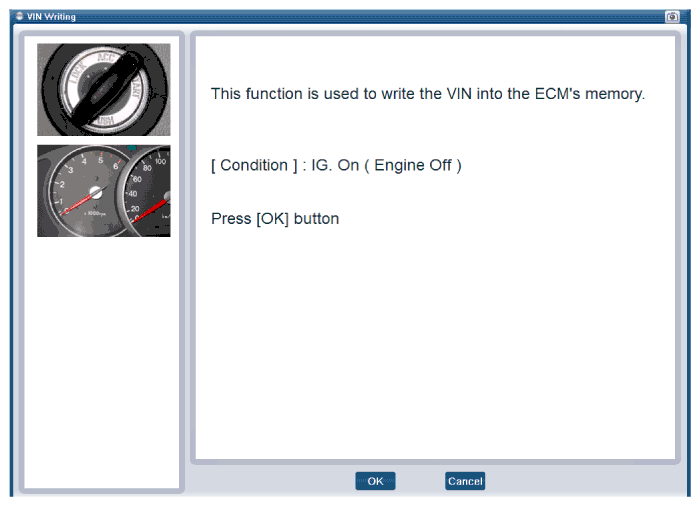

   [VIN Writing 1]

   Fig 6: Screen Display - VIN Writing 1

   Courtesy of KIA MOTORS AMERICA, INC.

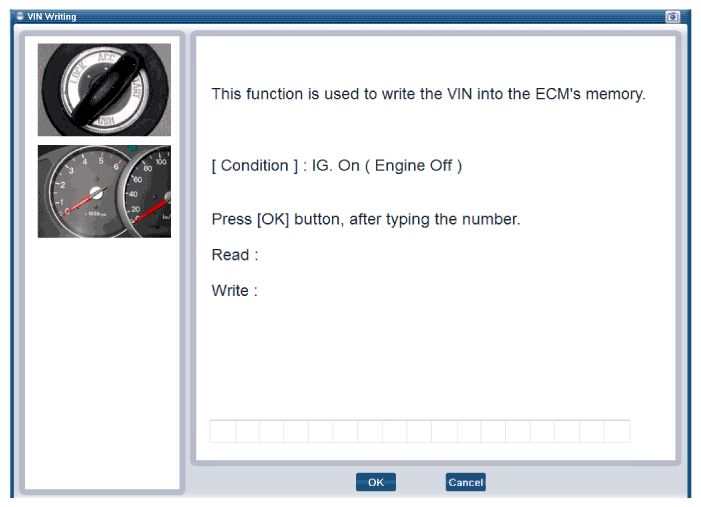

   [VIN Writing 2]

   Fig 7: Screen Display - VIN Writing 2

   Courtesy of KIA MOTORS AMERICA, INC.

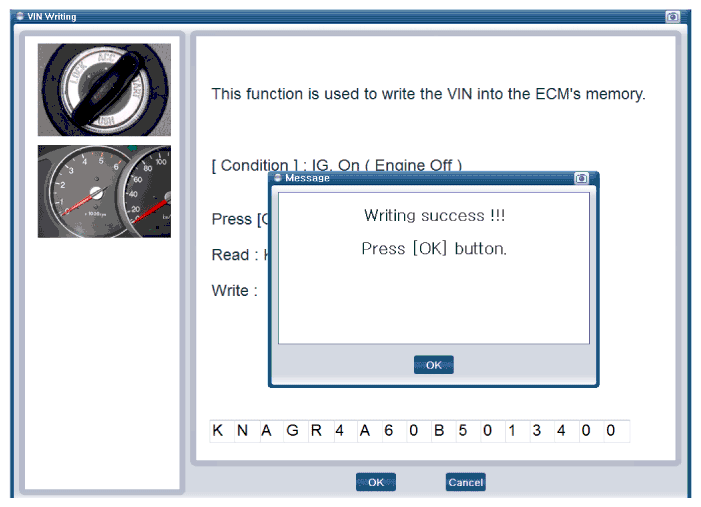

   [VIN Writing 3]

   Fig 8: Screen Display - VIN Writing 3

   Courtesy of KIA MOTORS AMERICA, INC.
