Section 180 (Smart Cruise Control Diagnosis)
>>
DTC C1632: Cluster Control Switch Fail
>>
Specification
>>
Signal Waveform & Data
Signal Waveform & Data
WARNING:
This page is about a different car, the 2017 Kia K900. However, it is still accessible from the selected car via links, so may be relevant.

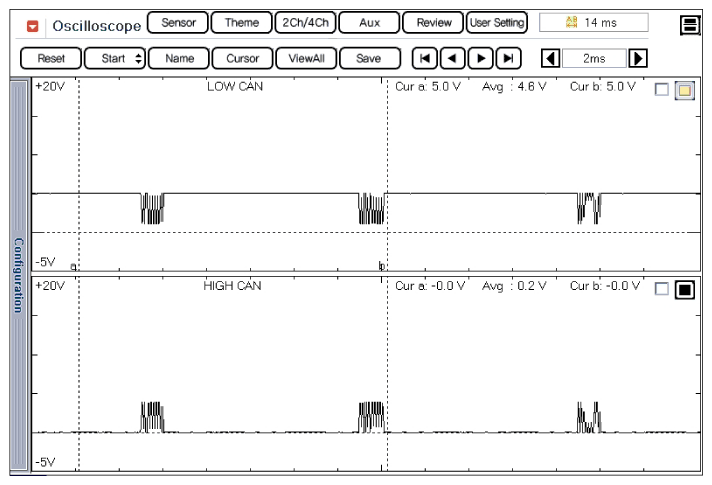

Fig 1: Scantool Display - Normal Waveform Of Body CAN High & Low
Courtesy of KIA MOTORS AMERICA, INC.

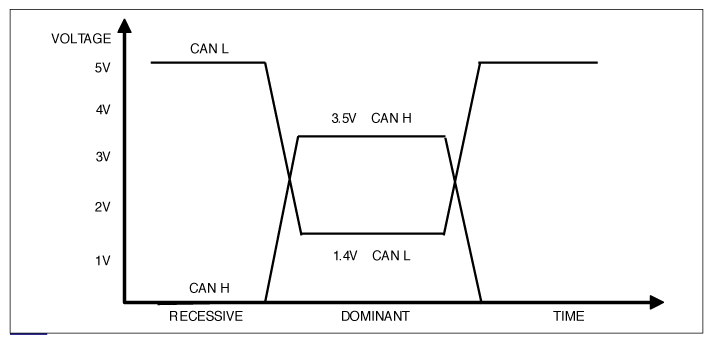

Fig 2: Scantool Display - Normal Voltage Level Of Body CAN
Courtesy of KIA MOTORS AMERICA, INC.
