Monitor GDS Data
WARNING: This page is about a different car, the 2017 Kia K900. However, it is still accessible from the selected car via links, so may be relevant.
- Vehicle Parked & Ignition ON.
- Connect GDS and select "DTC Analysis" mode.

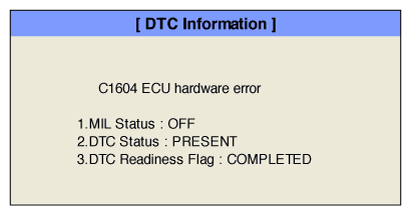

- Click "DTC Status" on the "Diagnostic Trouble Codes (DTC) " menu bar to view DTC's information.
- Confirm that "DTC Readiness Flag" indicates "COMPLETED".
- Read "DTC Status" parameter.
- Is parameter displayed "Present Fault"?
YES
- Go to "TERMINAL AND CONNECTOR INSPECTION " procedure.
NO
- Fault is intermittent caused by poor contact in the sensor's and/or SCC's connector or was repaired and SCC memory was not cleared.
