Engine Room

WARNING: This page is about a different car, the 2017 Kia K900. However, it is still accessible from the selected car via links, so may be relevant.

[Lambda Engine]

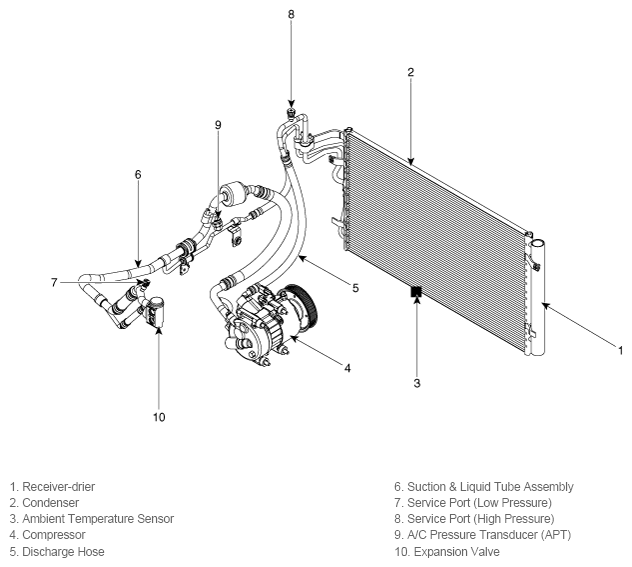

Fig 1: Locating Engine Room Components (Lambda Engine)

Courtesy of KIA MOTORS AMERICA, INC.

[Tau Engine]

Fig 2: Locating Engine Room Components (Tau Engine)

Courtesy of KIA MOTORS AMERICA, INC.

Interior

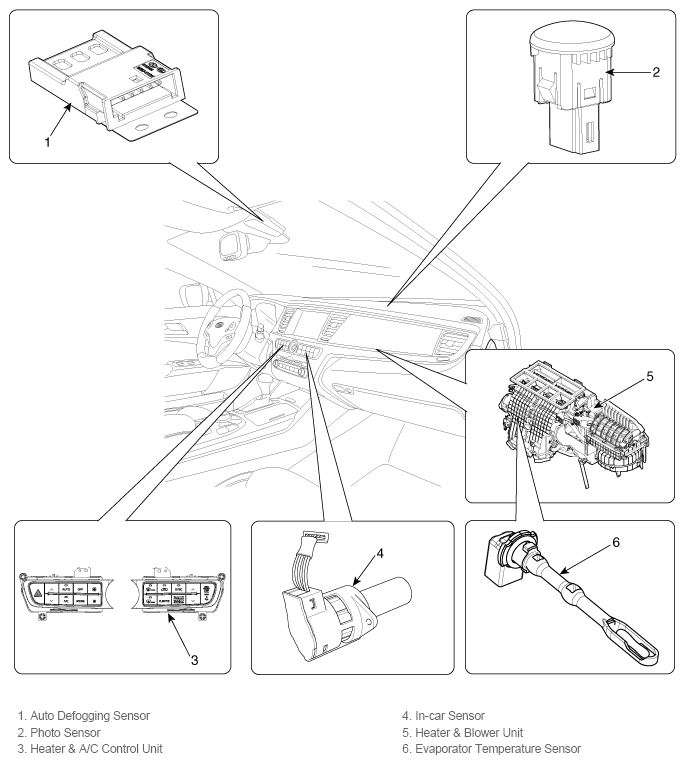

Fig 3: Locating Engine Room Components (Interior)

Courtesy of KIA MOTORS AMERICA, INC.
