Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Kia K900. However, it is still accessible from the selected car via links, so may be relevant.

Information

When removing and installing the hood lifter, an assistant is necessary.
When removing the clips, use a clip remover.

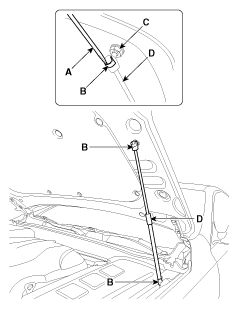

Using a screwdriver (A), lift the socket clips (B) up slightly on both ends of the lifter (D), and then remove the lifter from the bracket (C).

Fig 1: Removing Lifter From Bracket Using Screwdriver
Courtesy of KIA MOTORS AMERICA, INC.
Push the socket of the lifter into the bracket for installation.
Information
- Make sure the hood locks/unlocks and opens/closes properly.
