CLU Variant Coding

WARNING: This page is about a different car, the 2017 Kia K900. However, it is still accessible from the selected car via links, so may be relevant.

After replacing the cluster with a new one, must be performed the "Variant Coding" procedure.

Connect the cable of GDS to the data link connector in driver side crash pad lower panel, turn the power on GDS.
Select model and "BCM".
Select Variant coding mode to perform.

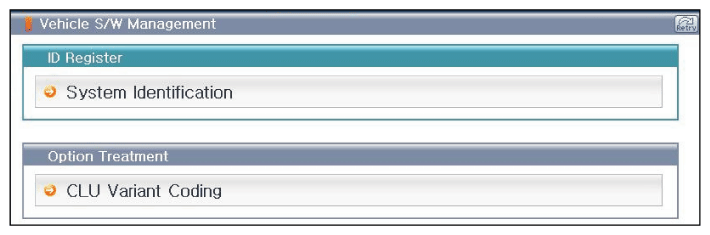

Fig 1: Screen Display - CLU Variant Coding
Courtesy of KIA MOTORS AMERICA, INC.

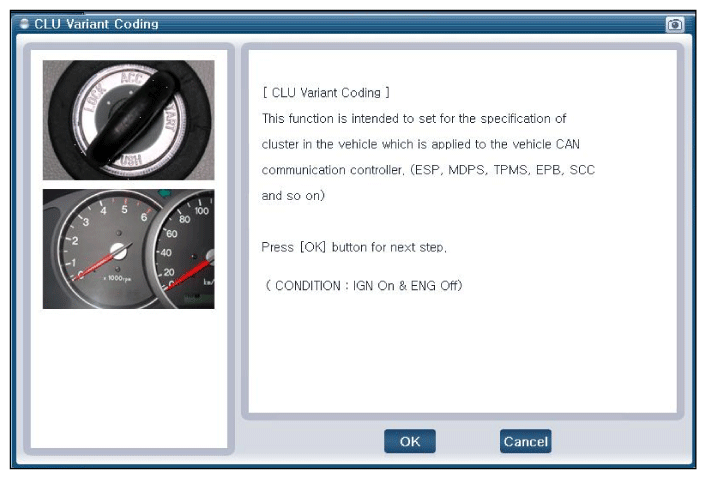

Fig 2: Screen Display - CLU Variant Coding (Set Specification Of Cluster)
Courtesy of KIA MOTORS AMERICA, INC.

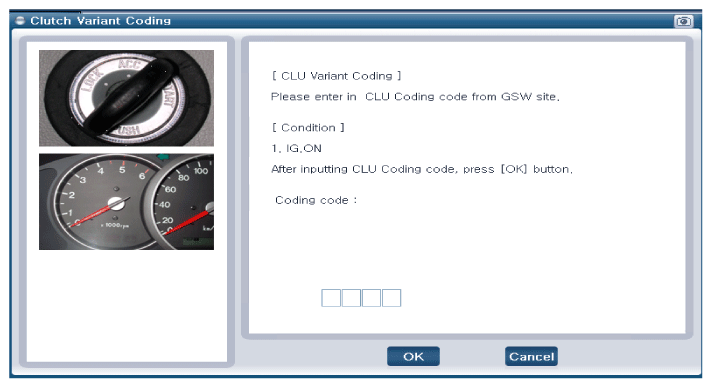

Fig 3: Screen Display - CLU Variant Coding (Input CLU Coding Code)
Courtesy of KIA MOTORS AMERICA, INC.
If the trouble codes occurred when performing variant coding, try the CLU variant coding again after checking the installation status of CLU system.

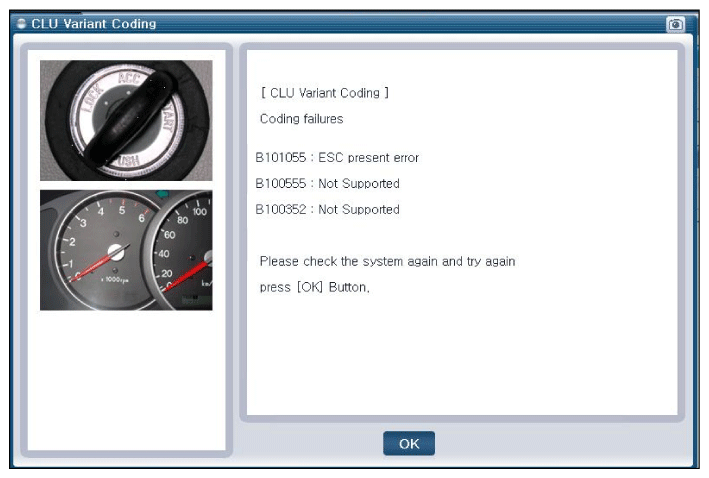

Fig 4: Screen Display - CLU Variant Coding (Coding Failures)
Courtesy of KIA MOTORS AMERICA, INC.
