Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Kia K900. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Put on gloves to protect your hands.

NOTE:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces to protect from damaging the surface.
Take care not to bend or scratch the trim and panels.

Remove the floor console assembly.
(Refer to Floor Console - "FLOOR CONSOLE ASSEMBLY ")

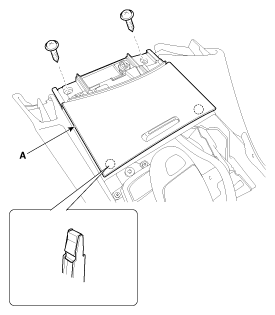

After loosening the mounting screws, then remove the floor console front tray (A).

Fig 1: Removing Floor Console Front Tray
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the connectors (A).

Fig 2: Locating Floor Console Front Tray Connectors
Courtesy of KIA MOTORS AMERICA, INC.
Using a screwdriver or ornament remover, remove both sides of the console side garnish (A).

Fig 3: Removing Both Sides Of Console Side Garnish Using Screwdriver
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the mounting screws (A) located in the back of the rear console cover.

Fig 4: Locating Rear Console Cover Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.
After loosening the mounting screws, then remove the rear console cover (A).

Fig 5: Removing Rear Console Cover
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Make sure the connector is connected properly.
- Replace any damage clips.
