Component Location

WARNING: This page is about a different car, the 2017 Kia K900. However, it is still accessible from the selected car via links, so may be relevant.

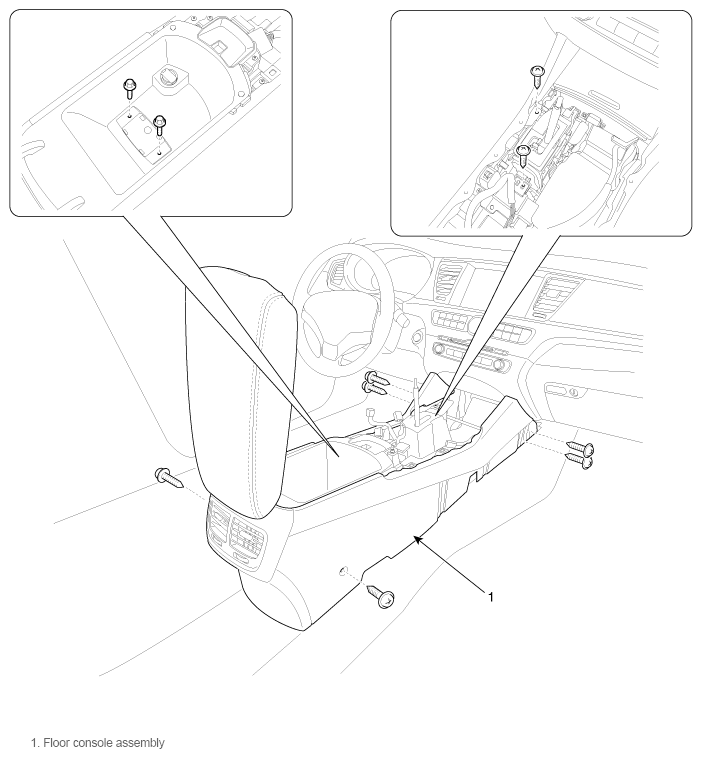

Fig 1: Floor Console Assembly With Mounting Screws
G11801015Courtesy of KIA MOTORS AMERICA, INC.
