Repair Procedures: Adjustment

WARNING: This page is about a different car, the 2017 Kia K900. However, it is still accessible from the selected car via links, so may be relevant.
  1. After loosening the trunk lid hinge (A) mounting bolt, adjust the trunk lid by moving it up or down, or right or left.
  2. Adjust the trunk lid height by turning the trunk lid overslam bumpers (B).
  3. After loosening the trunk lid striker (C) mounting bolts, adjust the trunk lid striker by moving it up or down, or right or left.

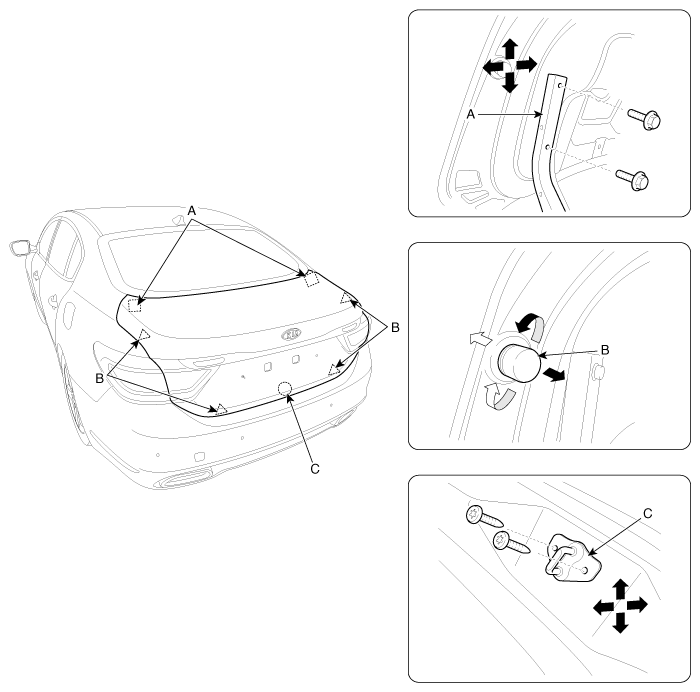

Fig 1: Adjusting Trunk Lid, Trunk Lid Height And Trunk Lid Striker
G11801437Courtesy of KIA MOTORS AMERICA, INC.
