Antenna Status Check

WARNING: This page is about a different car, the 2017 Kia K900. However, it is still accessible from the selected car via links, so may be relevant.

Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
Select the "Antenna Status Check".

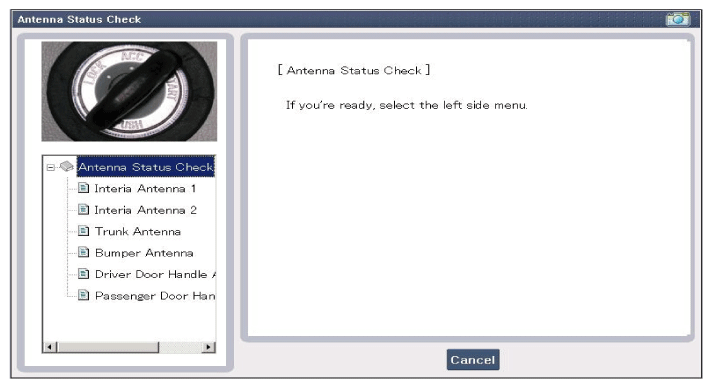

Fig 1: Screen Display - Antenna Status Check
Courtesy of KIA MOTORS AMERICA, INC.
With battery connection, select the "Antenna Status Check".

Fig 2: Screen Display - Antenna Status Check
Courtesy of KIA MOTORS AMERICA, INC.
Set the smart key near the related antenna and operate it with a GDS.

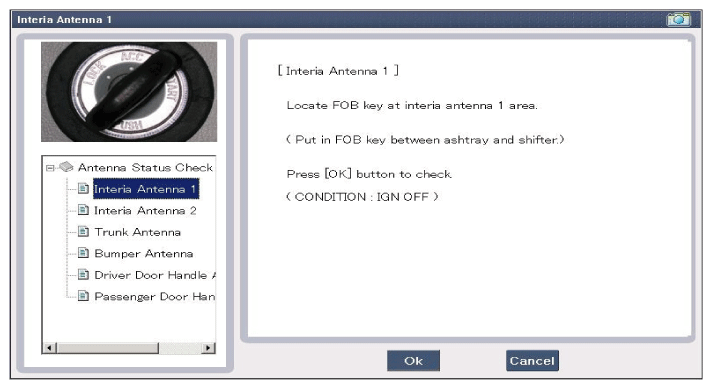

Fig 3: Screen Display - Interior Antenna 1
Courtesy of KIA MOTORS AMERICA, INC.

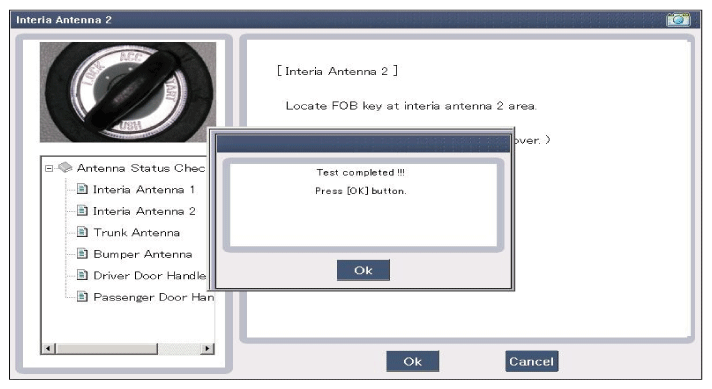

Fig 4: Screen Display - Interior Antenna 2
Courtesy of KIA MOTORS AMERICA, INC.
If the smart key runs normal, the related antenna, smart key (transmission, reception) and exterior receiver are normal.
Antenna status
- INTERIOR Antenna 1
- INTERIOR Antenna 2
- INTERIOR Antenna 3
- Trunk antenna
- BUMPER/Antenna
- Front driver door Antenna
- Front passenger door Antenna
- Rear driver door Antenna
- Rear passenger door Antenna
