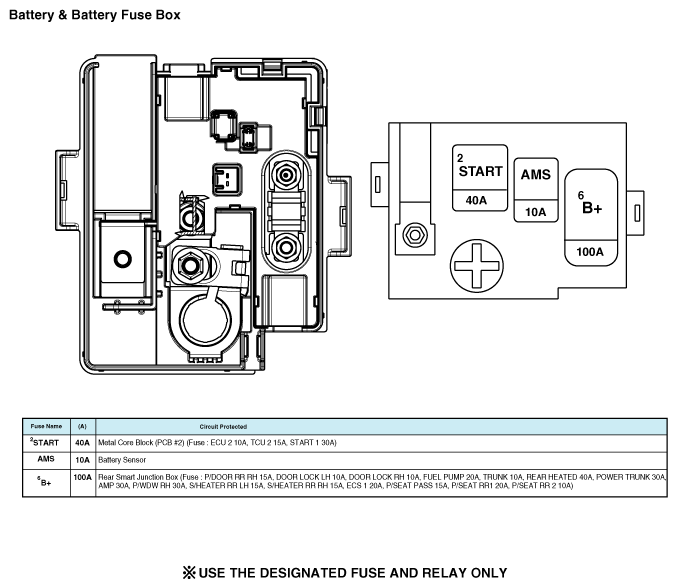

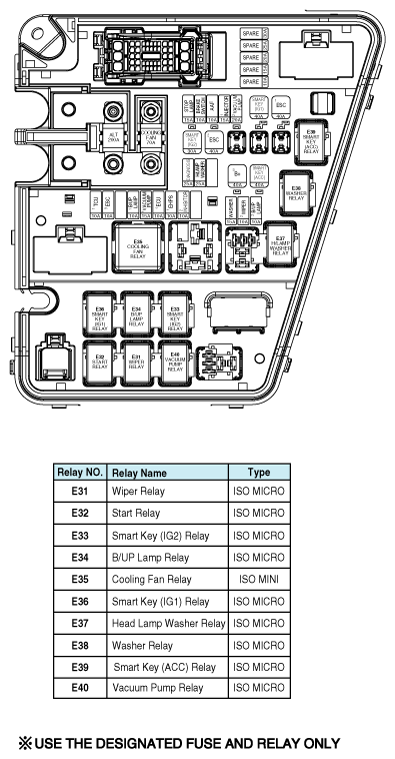

ENGINE COMPARTMENT RELAY BOX RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| Wiper Relay |
| Start Relay |
| Smart Key (IG2) Relay |
| Back-Up Lamp Relay |
| C/Fan Relay |
| Smart Key (IG1) Relay |
| Headlamp Washer Relay |
| Washer Relay |
| Smart Key (ACC) Relay |
| Vacuum Pump Relay |
ENGINE COMPARTMENT RELAY BOX FUSE IDENTIFICATION LEGEND
| Fuse Name | (A) | Circuit Protected | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| STOP LAMP | 15A | Stop Signal Electronic Module | |||||||||
| BRAKE SWITCH | 10A | Stop Lamp Switch, Smart Key Control Module | |||||||||
| AAF | 10A | Not Used | |||||||||
| 1 INJECTOR |
15A | IDB (Injector Driver Box) | |||||||||
| 2 VACUUM PUMP |
20A | E/R Fuse & Relay Box LH (Vacuum Pump Relay) | |||||||||
| SMART KEY (IG1) | 40A | E/R Fuse & Relay Box LH (Smart Key (IG1) Relay) | |||||||||
| 1 ESC |
40A | ESC Module | |||||||||
| ALT | 200A | E/R Fuse & Relay Box LH (Fuse : COOLING FAN 70A, DIAGNOSIS 25A, B+ 3 40A, SMART KEY (ACC) 40A), Alternator | |||||||||
| COOLING FAN | 70A | E/R Fuse & Relay Box LH (Cooling Fan Relay) | |||||||||
| SMART KEY (IG2) | 30A | E/R Fuse & Relay Box LH (Samrt Key (IG2) Relay) | |||||||||
| 2 ESC |
40A | ESC Module | |||||||||
| DIAGNOSIS | 25A | Multipurpose Check Connector | |||||||||
| H/LAMP WASHER | 25A | Not Used | |||||||||
| 3 B+ |
40A | Smart Junction Box (Fuse : S/HEATER DRV 15A, S/HEATER PASS 15A, P/WDW LH 30A, MODULE 1 10A, WIPER 10A) | |||||||||
| SMART KEY (ACC) | 40A | E/R Fuse & Relay Box LH (Smart Key (ACC) Relay) | |||||||||
| 1 TCU |
10A | TCM, Transmission Range Switch | |||||||||
| 3 ESC |
10A | Steering Angle Sensor, ESC Module | |||||||||
| 1 B/UP LAMP |
10A | E/R Fuse & Relay Box LH (Back-up Lamp Relay) | |||||||||
| 1 VACUUM PUMP |
10A | E/R Fuse & Relay Box LH (Vacuum Pump Relay), Brake Vacuum Switch | |||||||||
| 1 ECU |
10A | ECM, IDB (Injector Driver Box) | |||||||||
| 1 EHPS |
10A | EHPS Module | |||||||||
| 2 INHIBITOR |
10A | A/T Console Switch, Electronic Shifter | |||||||||
| WASHER | 15A | E/R Fuse & Relay Box LH (Washer Relay) | |||||||||
| 2 WIPER |
10A | E/R Fuse & Relay Box LH (Wiper Relay) | |||||||||
| 2 B/UP LAMP |
10A | Back View Camera & Back-up Lamp, A/T Console Switch, Electro Chromic Mirror, A/V & Navigation Head Unit | |||||||||
| NOTE: USE THE DESIGNATED FUSE AND RELAY ONLY | |||||||||||

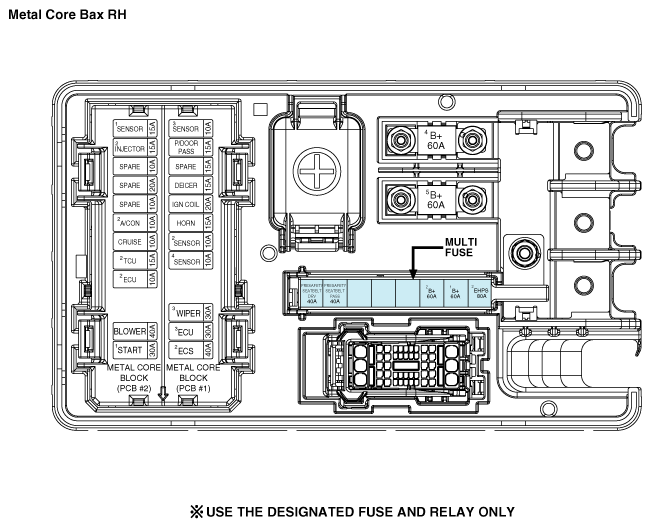

METAL CORE BOX (RH) FUSE IDENTIFICATION LEGEND
| Fuse Name | (A) | Circuit Protected | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| METAL CORE BLOCK (PCB #1) |
3 SENSOR |
10A | Rear Smart Junction Box (Fuel Pump Relay) | ||||||||||
| P/DOOR PASS | 15A | Passenger Door Latch | |||||||||||
| DEICER | 15A | Metal Core Block (PCB #1) (Front Deicer Relay) | |||||||||||
| IGN COIL | 20A | Ignition Coil #1-6(G6DJ), Ignition Coil #1-8(G8BE), Condenser #1, #2 | |||||||||||
| HORN | 15A | Metal Core Block (PCB #1) (Horn Relay) | |||||||||||
| 2 SENSOR |
10A | Oxygen Sensor #1-4, E/R Fuse & Relay Box LH 9Cooling Fan Relay), Oil Control Valve #1-4 (G8BE) | |||||||||||
| 4 SENSOR |
10A | Camshaft Position Sensor #1-4 (G8BE) | |||||||||||
| WIPER | 30A | Wiper Motor | |||||||||||
| ECU | 30A | Metal Core Block (PCB #1) | |||||||||||
| ECS | 40A | Metal Core Block (PCB #1) | |||||||||||
| METAL CORE BLOCK (PCB #2) |
SENSOR | 15A | Purge Control solenoid Valve, ECM, Variable Intake Solenoid Valve, Oil Control valve #1-4, Canister Close Valve | ||||||||||
| INJECTOR | 15A | IDB (Injector Driver Box) | |||||||||||
| A/CON | 10A | A/C Control Module | |||||||||||
| CRUISE | 10A | Smart Cruise Control Radar | |||||||||||
| 2 TCU |
15A | TCM | |||||||||||
| 2 ECU |
10A | ECM | |||||||||||
| BLOWER | 40A | Metal Core Block(PCB) (Blower Relay) | |||||||||||
| 1 START |
30A | E/R Fuse & relay Box LH (Start Relay) | |||||||||||
| MULTI FUSE |
PRESAFETY SEATBELT DRV | 40A | Driver Seat Belt Pretensioner | ||||||||||
| PRESAFETY SEATBELT PASS | 40A | Passenger Seat Belt Pretensioner | |||||||||||
| 2 B+ |
60A | Smart Junction Box (Fuse: P/SEAT DRV 30A, P/SEAT PASS 20A, DOOR LAMP 10A, B/A HORN 10A, EPB 2 15A, SMART KEY 1 25A, P/DOOR DRV 15A, P/DOOR RR LH 15A, PDM 10A, POWER HANDLE 15A, SUNROOF 1 20A, INHIBITOR 1 10A | |||||||||||
| 1 B+ |
60A | Smart Junction Box (Fuse: EPB 1 15A, IPS1, 3, ARISU-LT1, Leak Current Autocut Device) | |||||||||||
| 2 EHPS |
80A | EHPS Module | |||||||||||
| FUSE | 4 B+ |
60A | Metal Core Block (PCB #1) (Fuse : ESC 2 40A, DEICER 15A, HORN 15A, P/DOOR PASS 15A, WIPER 3 30A, ECU 3 30A) | ||||||||||
| 5 B+ |
60A | Metal Core Block (PCB #2) (Fuse: CRUISE 10A, BLOWER 40A) | |||||||||||
| NOTE: USE THE DESIGNATED FUSE AND RELAY ONLY | |||||||||||||
