[High Pressure Fuel Line]

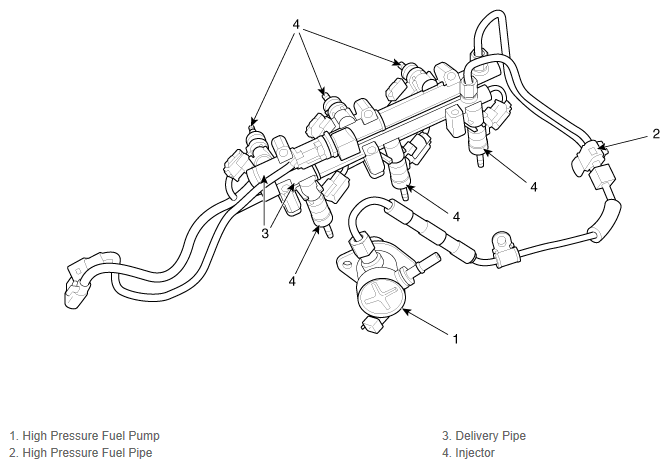

Fig 1: Locating High Pressure Fuel Line Components
G11856734Courtesy of KIA MOTORS AMERICA, INC.
WARNING: When removing the high pressure fuel pump, high pressure fuel pipe, delivery pipe, and injector, injury may be caused by leakage of high pressure fuel. For this reason, do not attempt any repairing immediately after engine stops.
